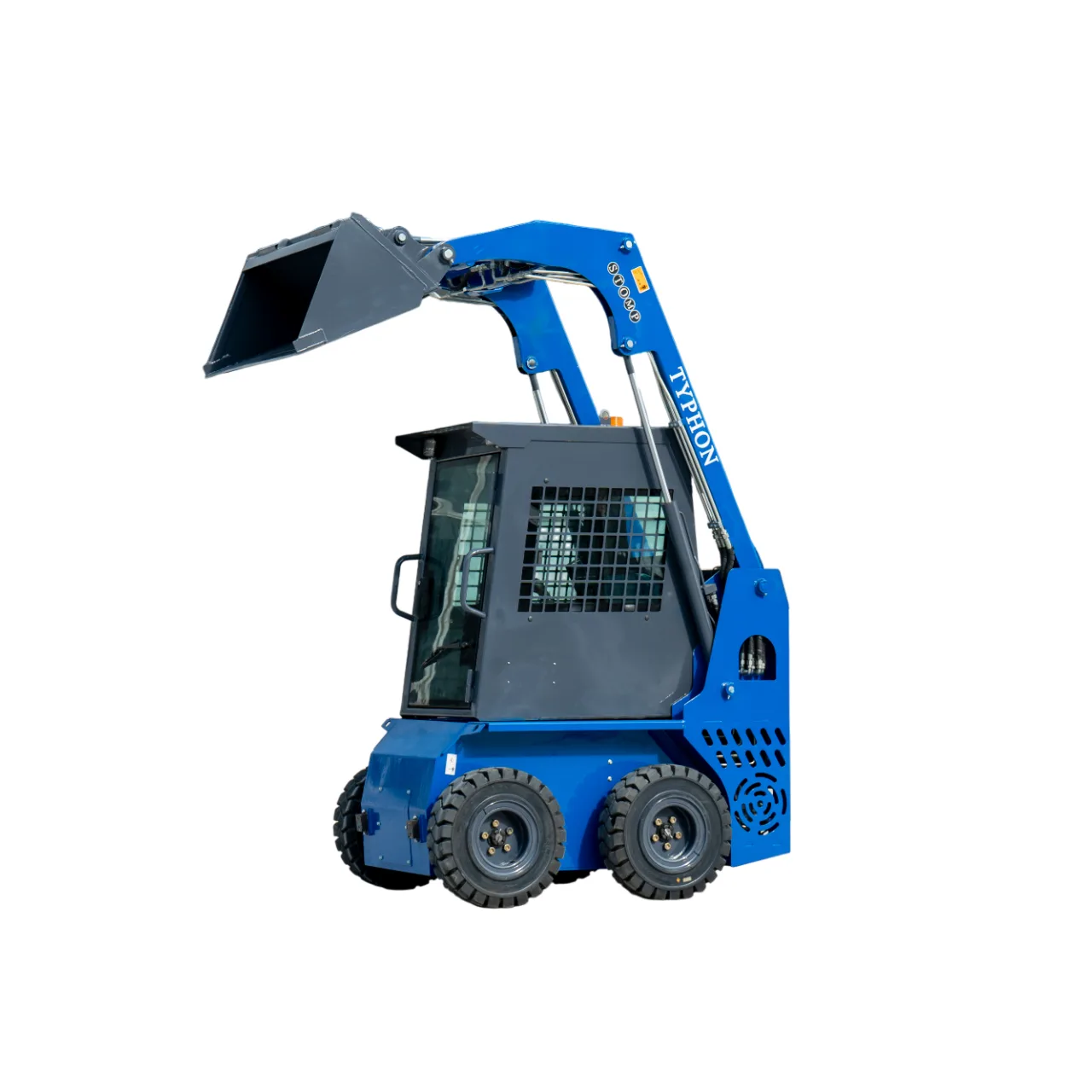

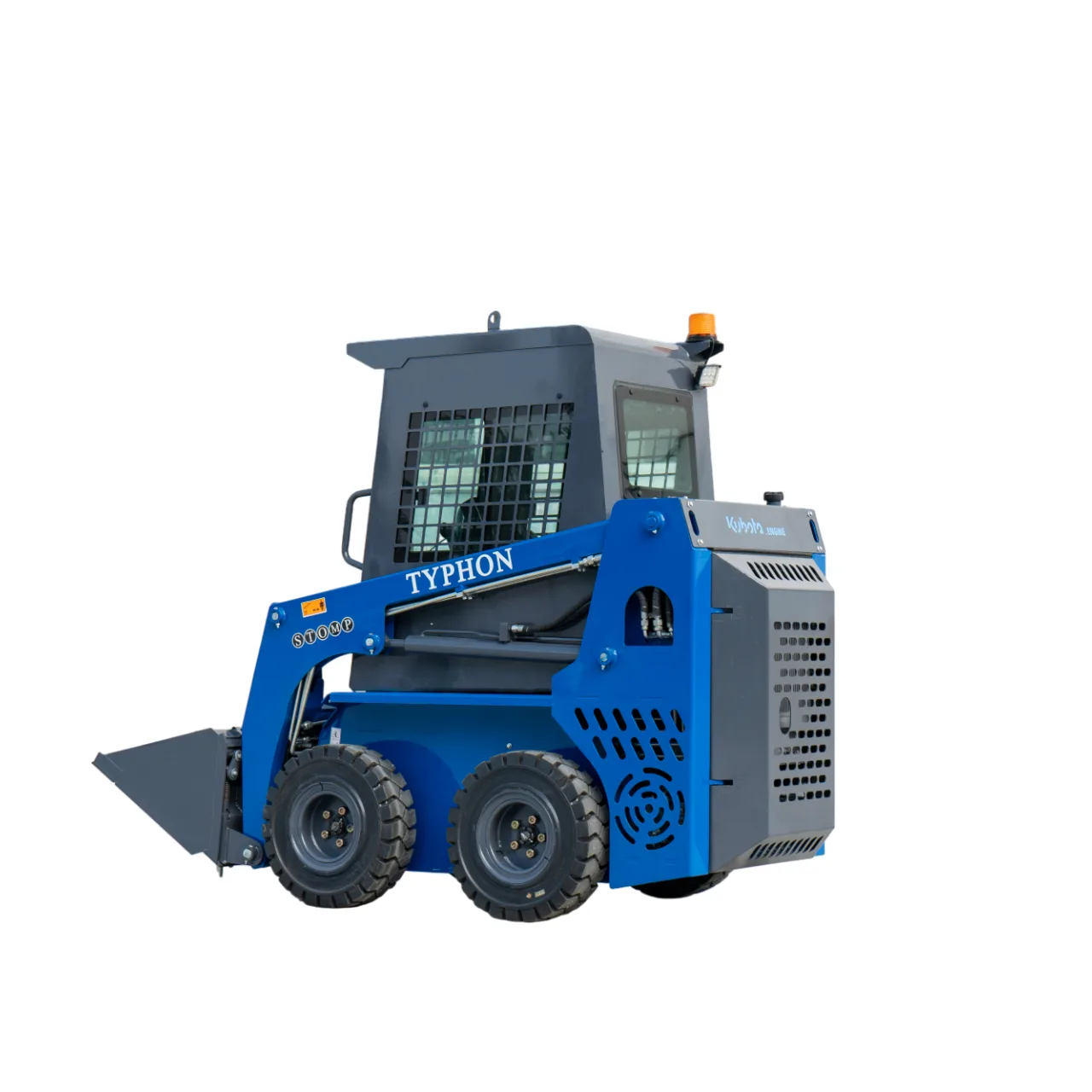

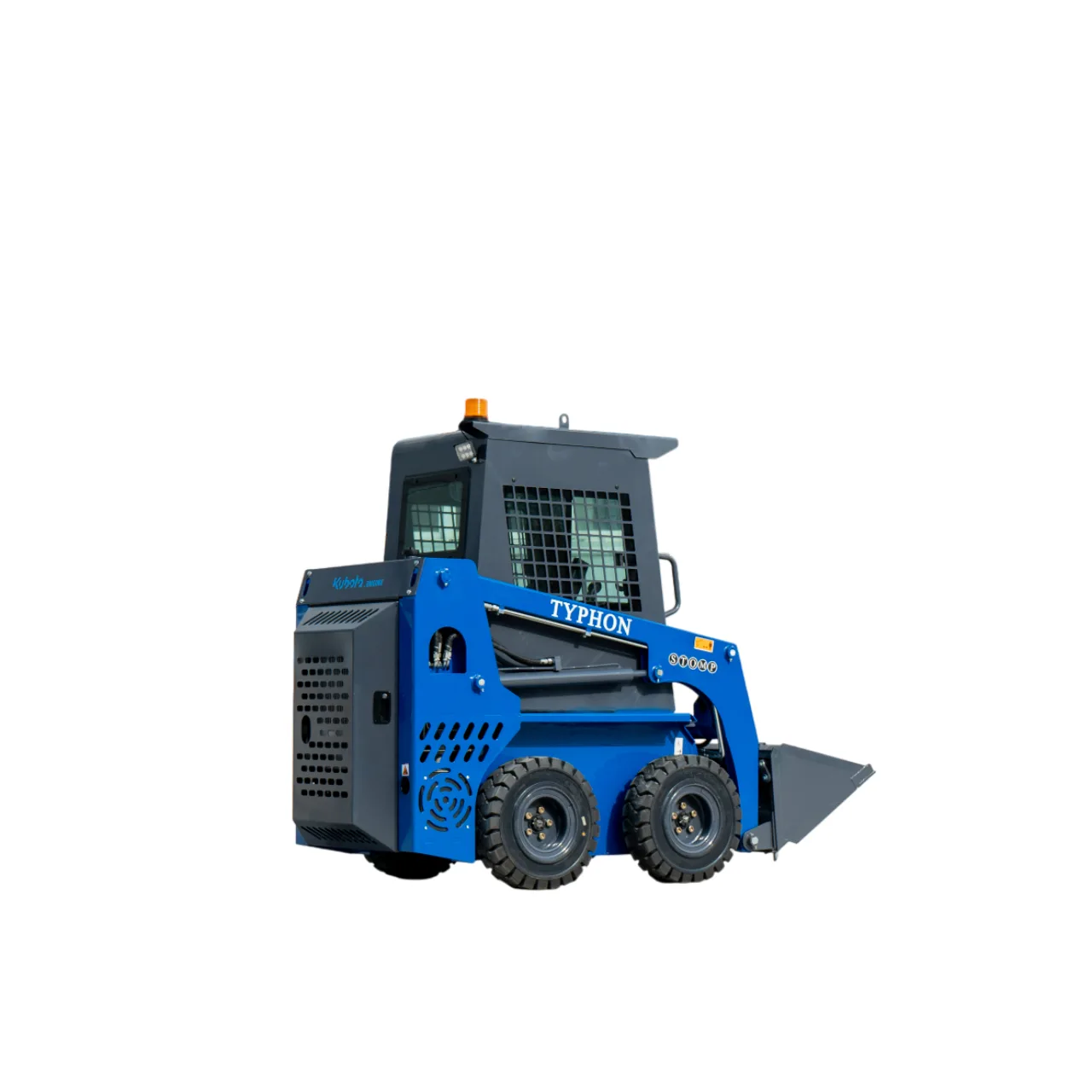

TYPHON STOMP 509 Wheel Skid Steer Loader 25HP Kubota D1105 w 1 Attachm

Item Description

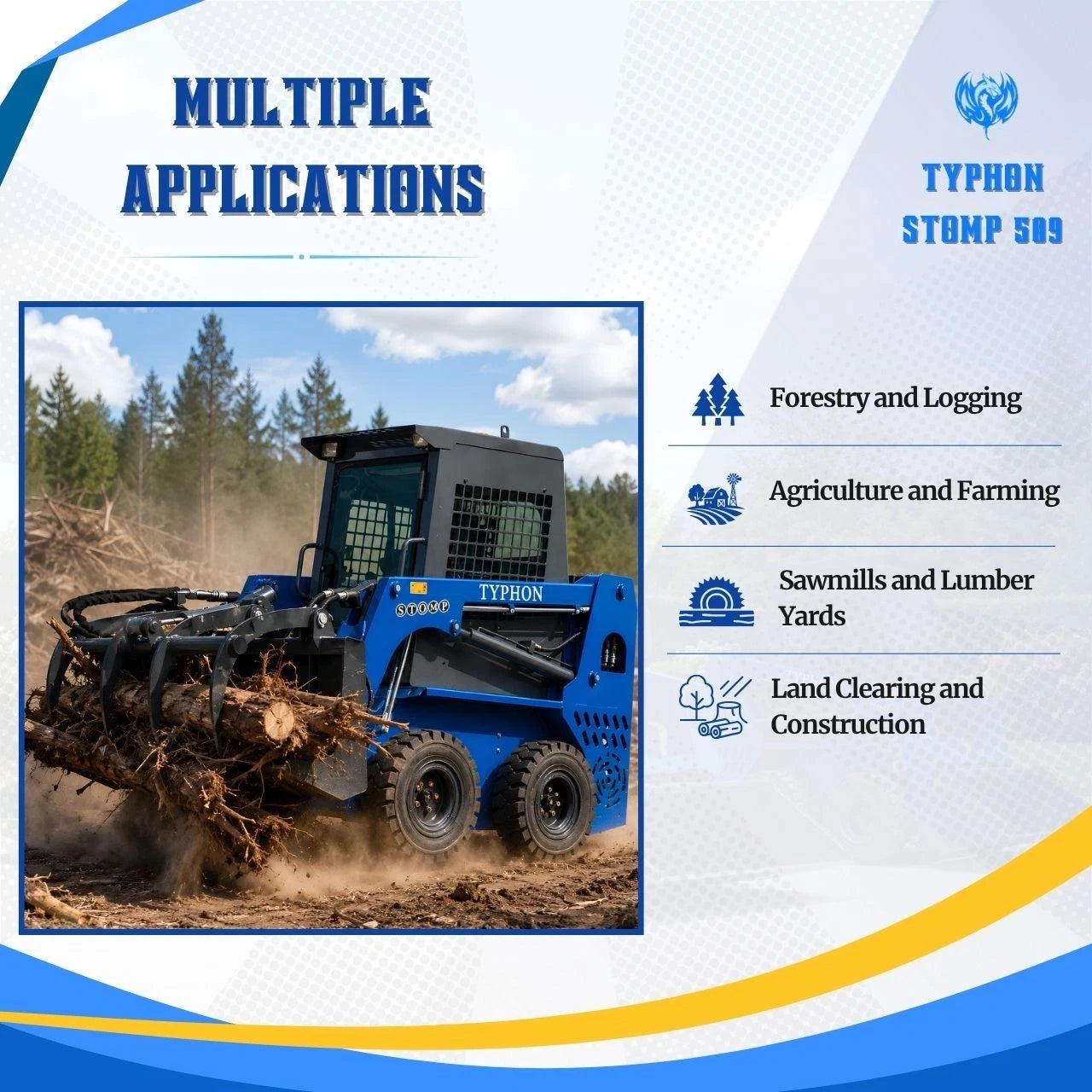

Built for versatility, power, and all-season performance, this Mini Skid Steer Loader is the perfect compact machine for construction, farming, landscaping, snow removal, property maintenance, and material handling. Its quick-attach system allows operators to easily switch between a wide range of professional attachments, transforming one machine into a complete multi-purpose workhorse.

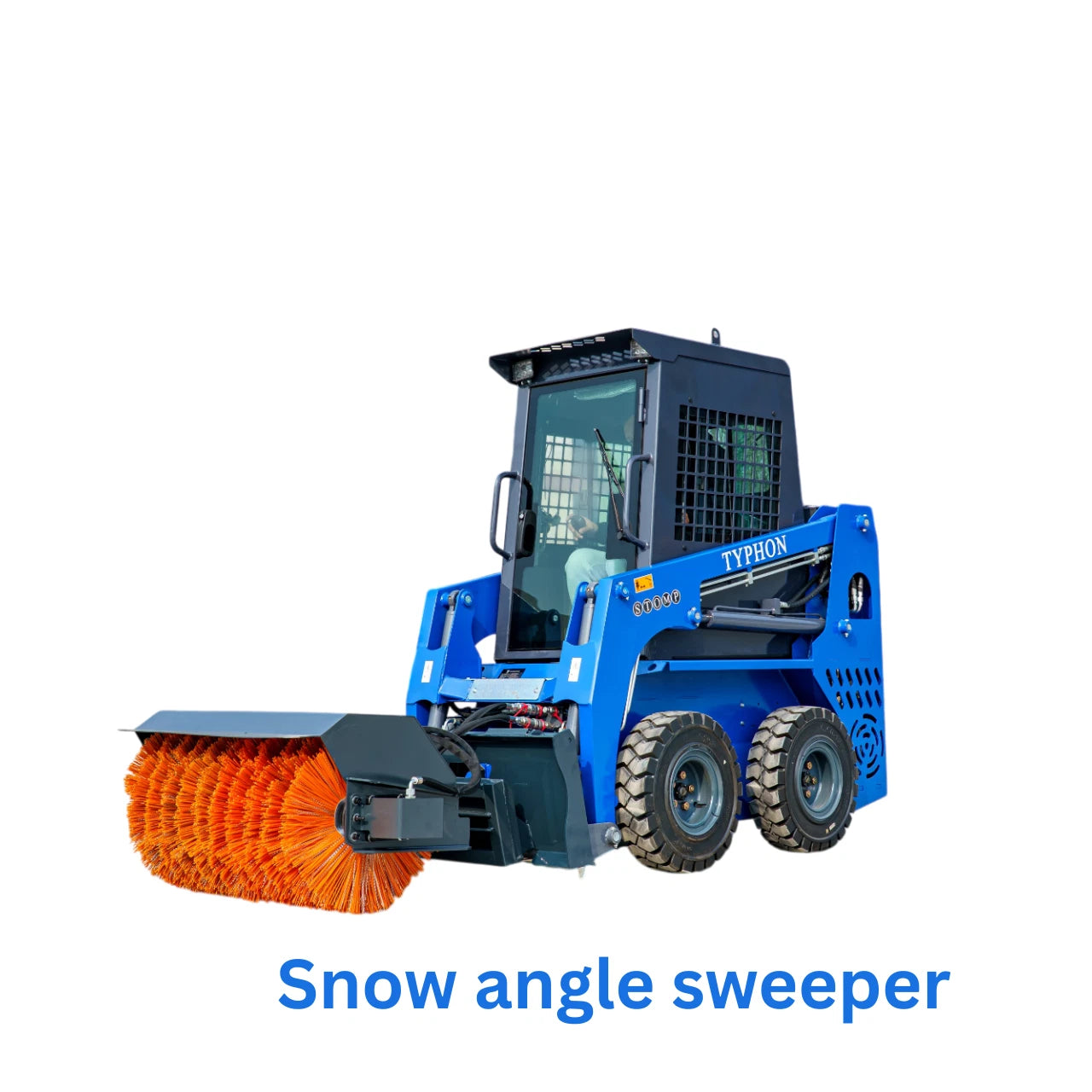

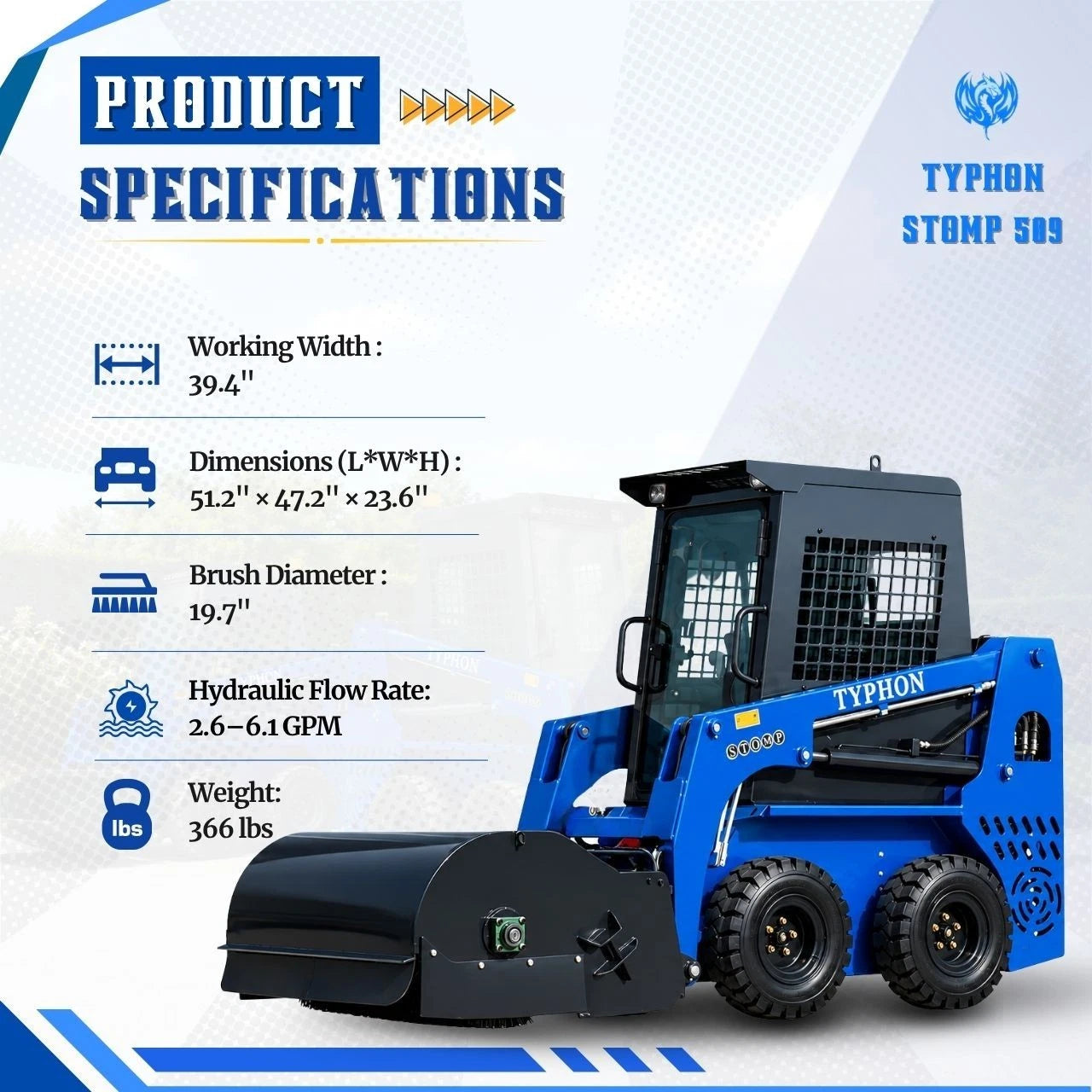

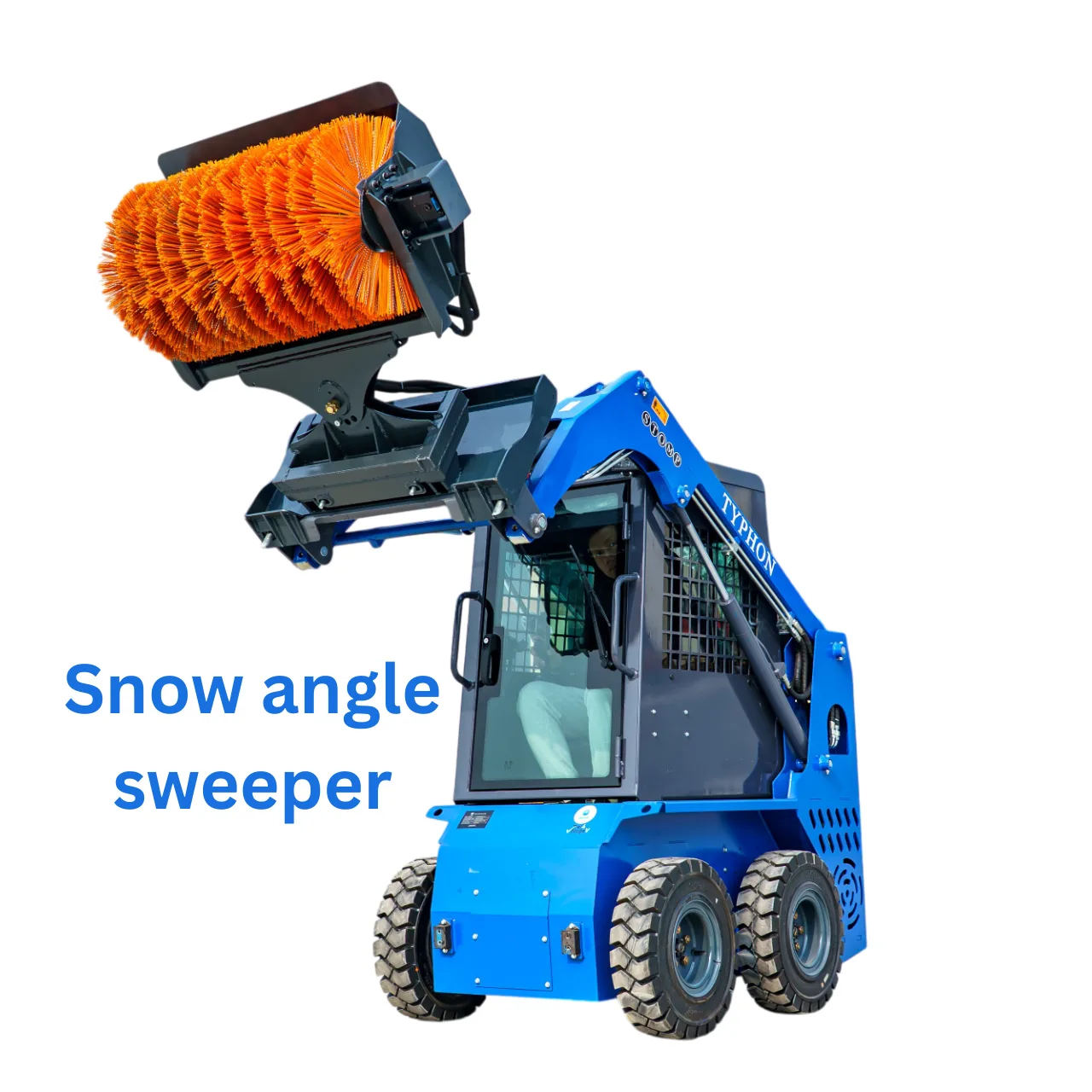

Whether you need digging, lifting, trenching, sweeping, mowing, drilling, or snow-clearing capability, this skid steer can be customized to match your exact job requirements. Choose from multiple optional attachments to create the perfect setup for your business or project.

Key Features & Specifications

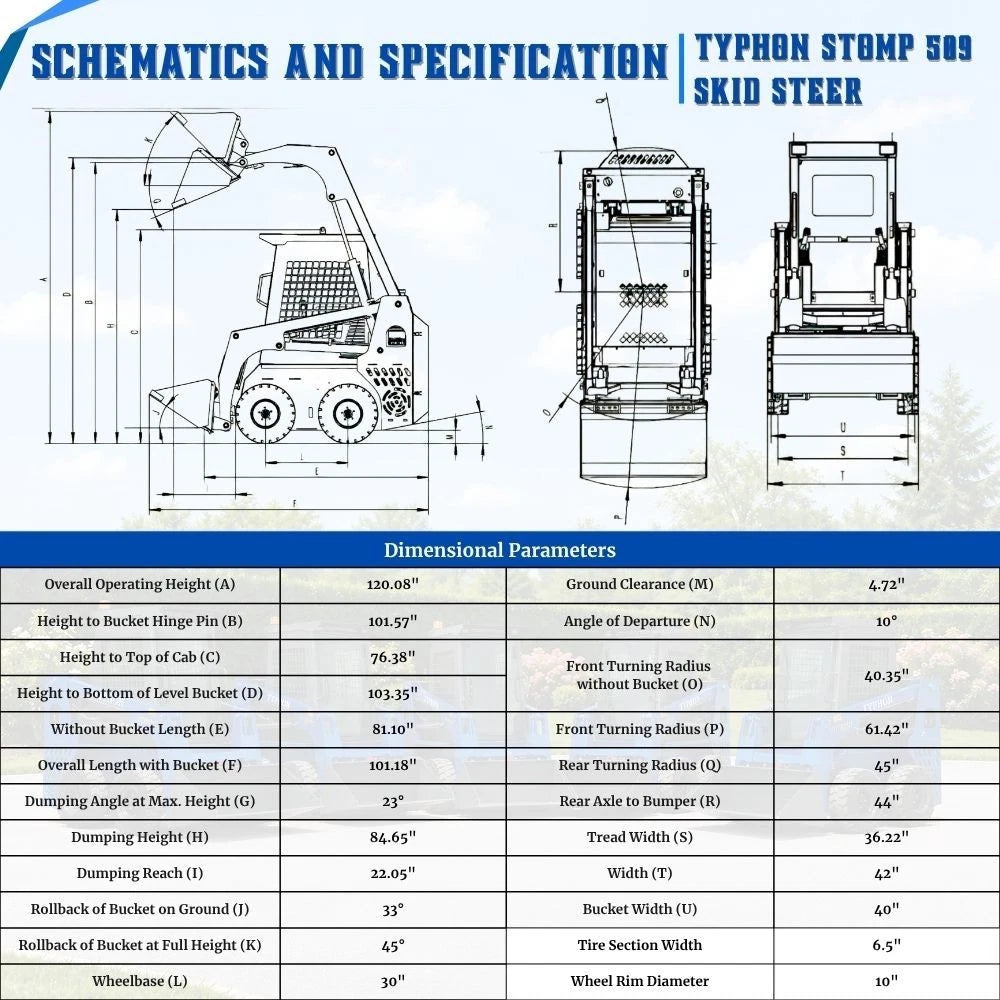

1. Optimal Operating Weight & Dimensions

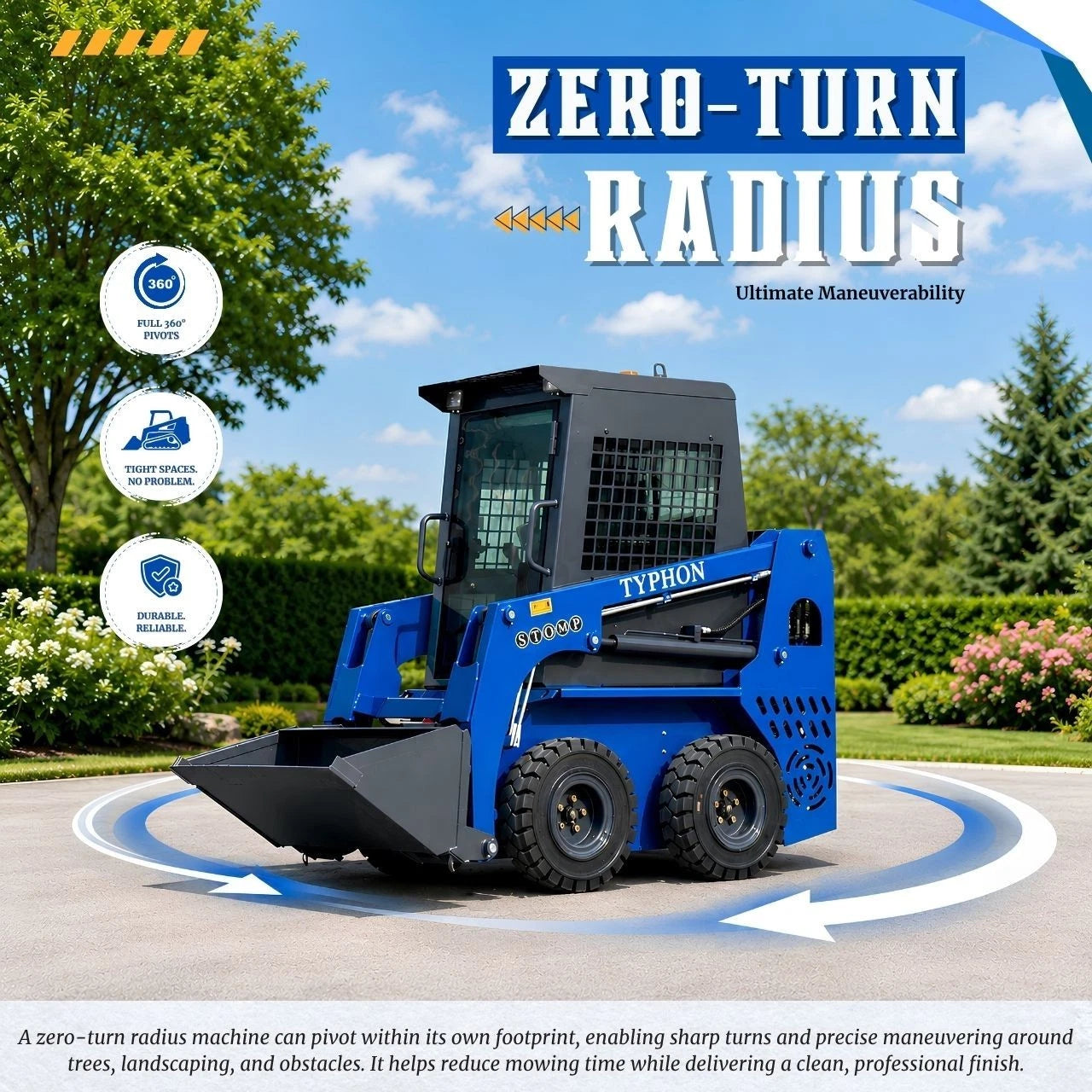

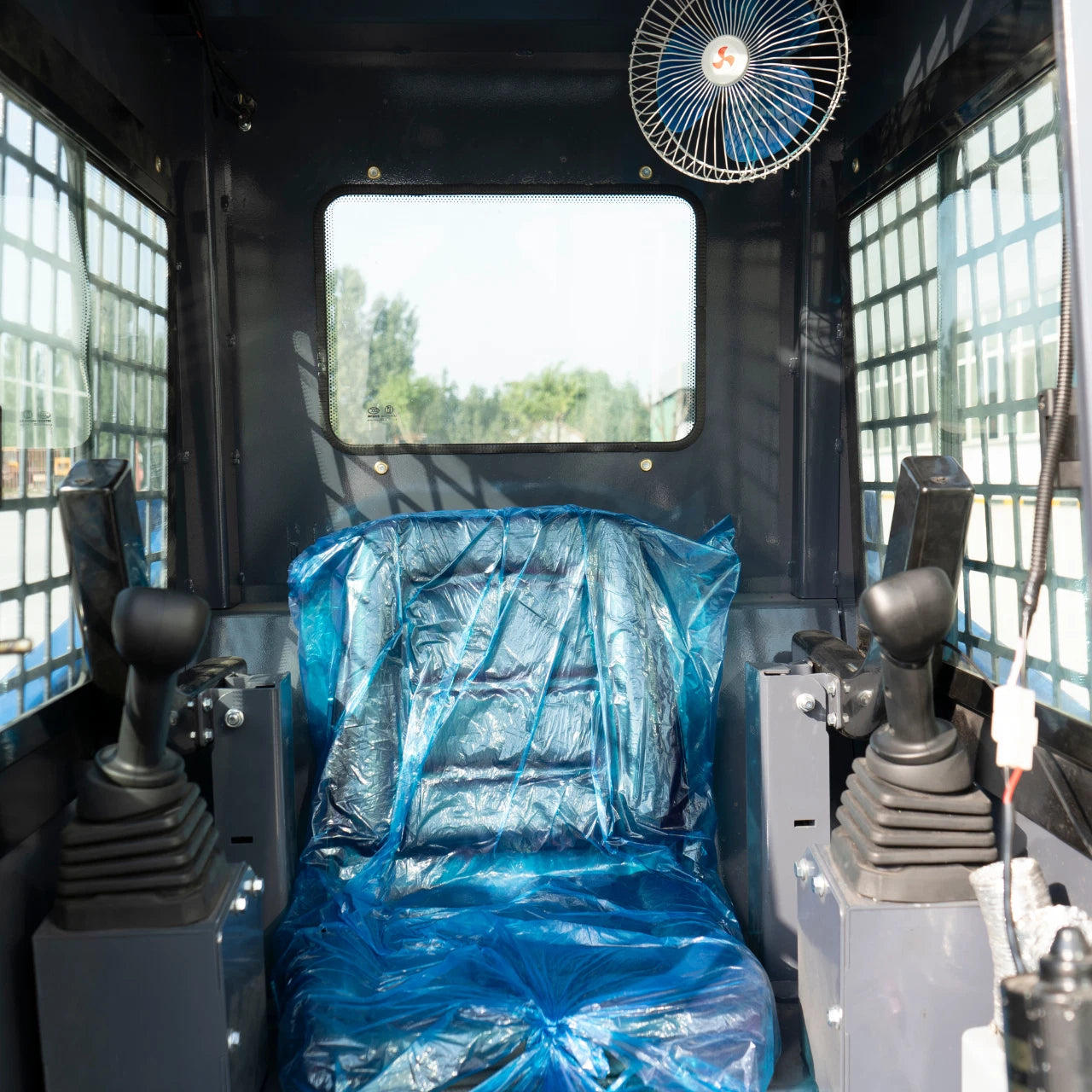

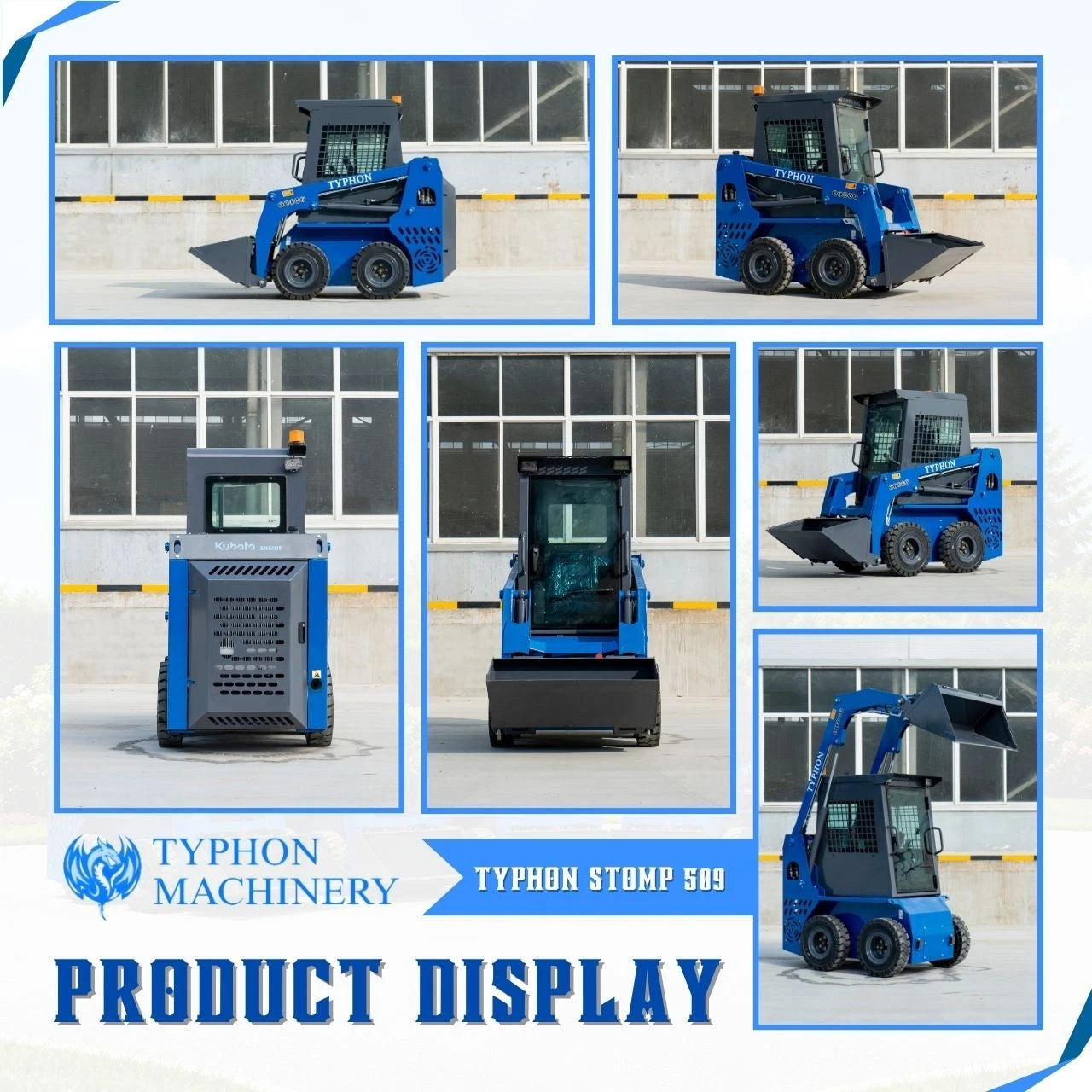

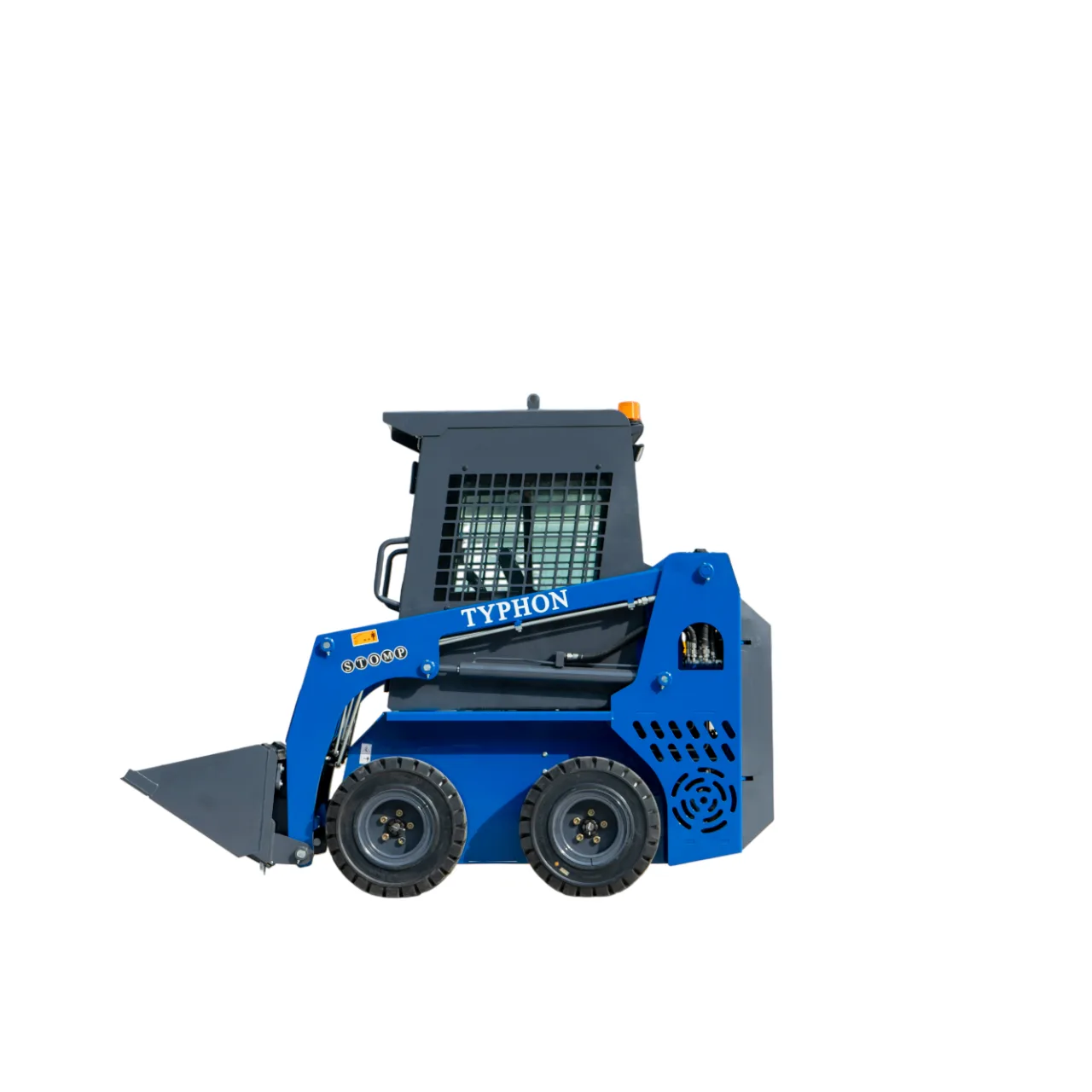

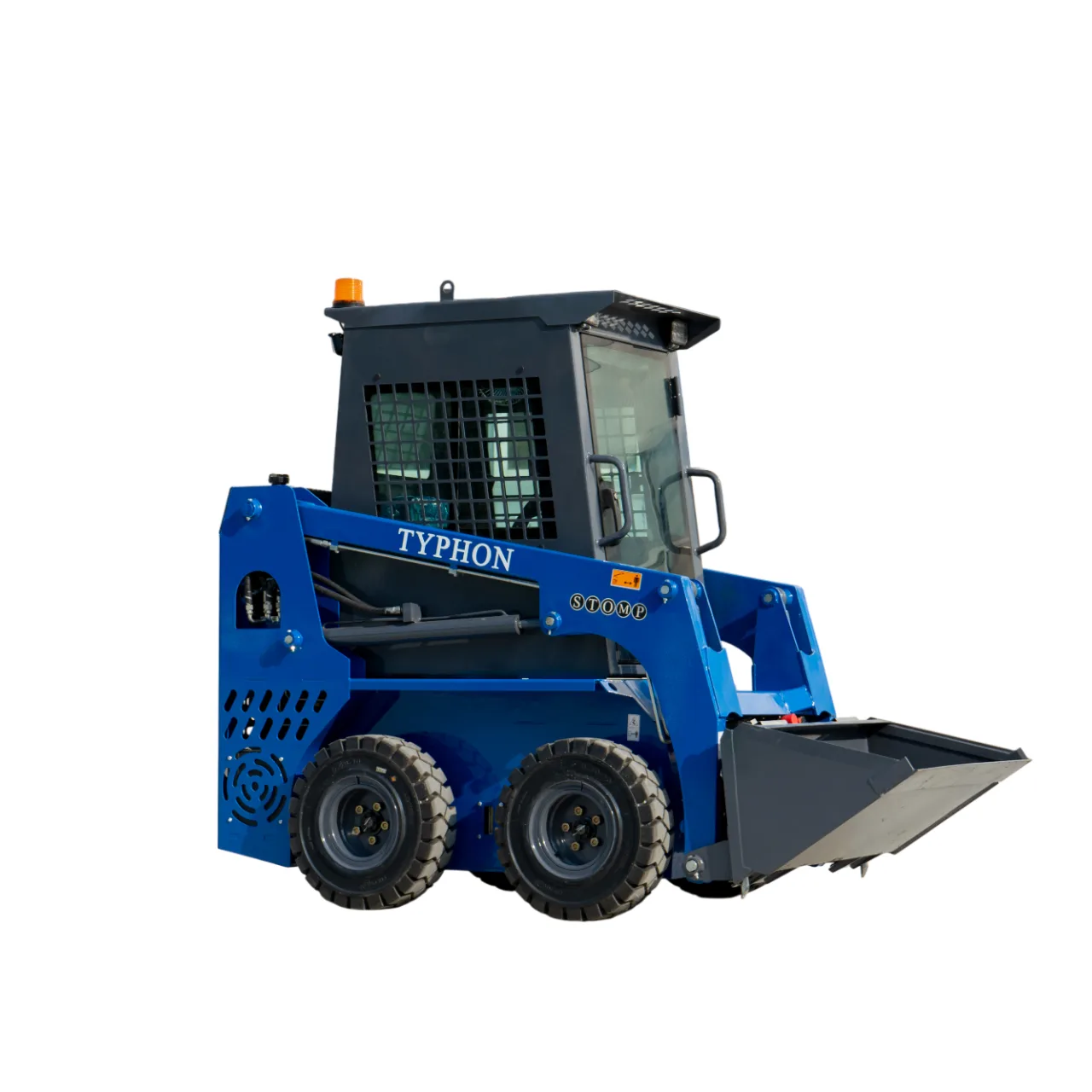

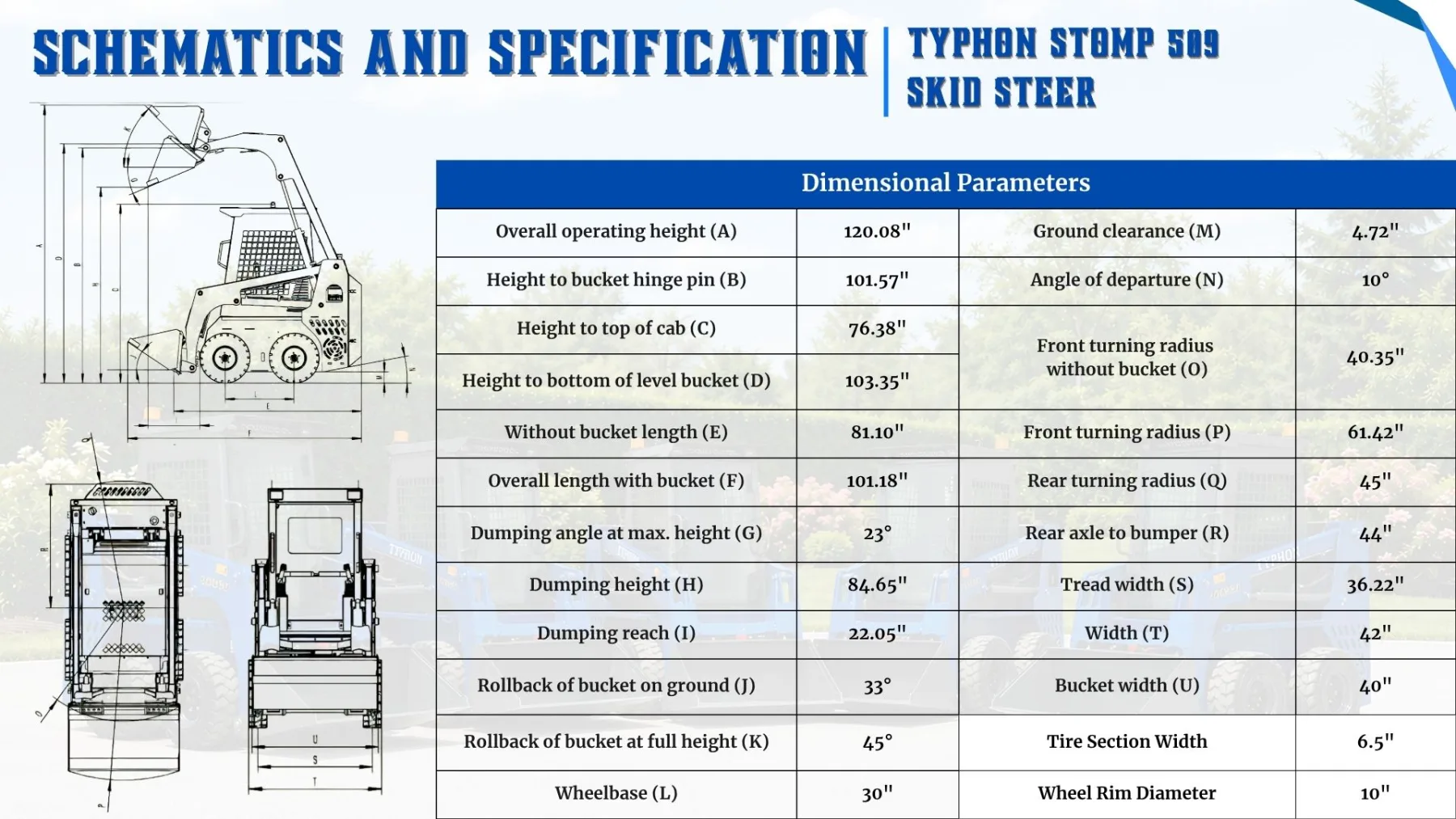

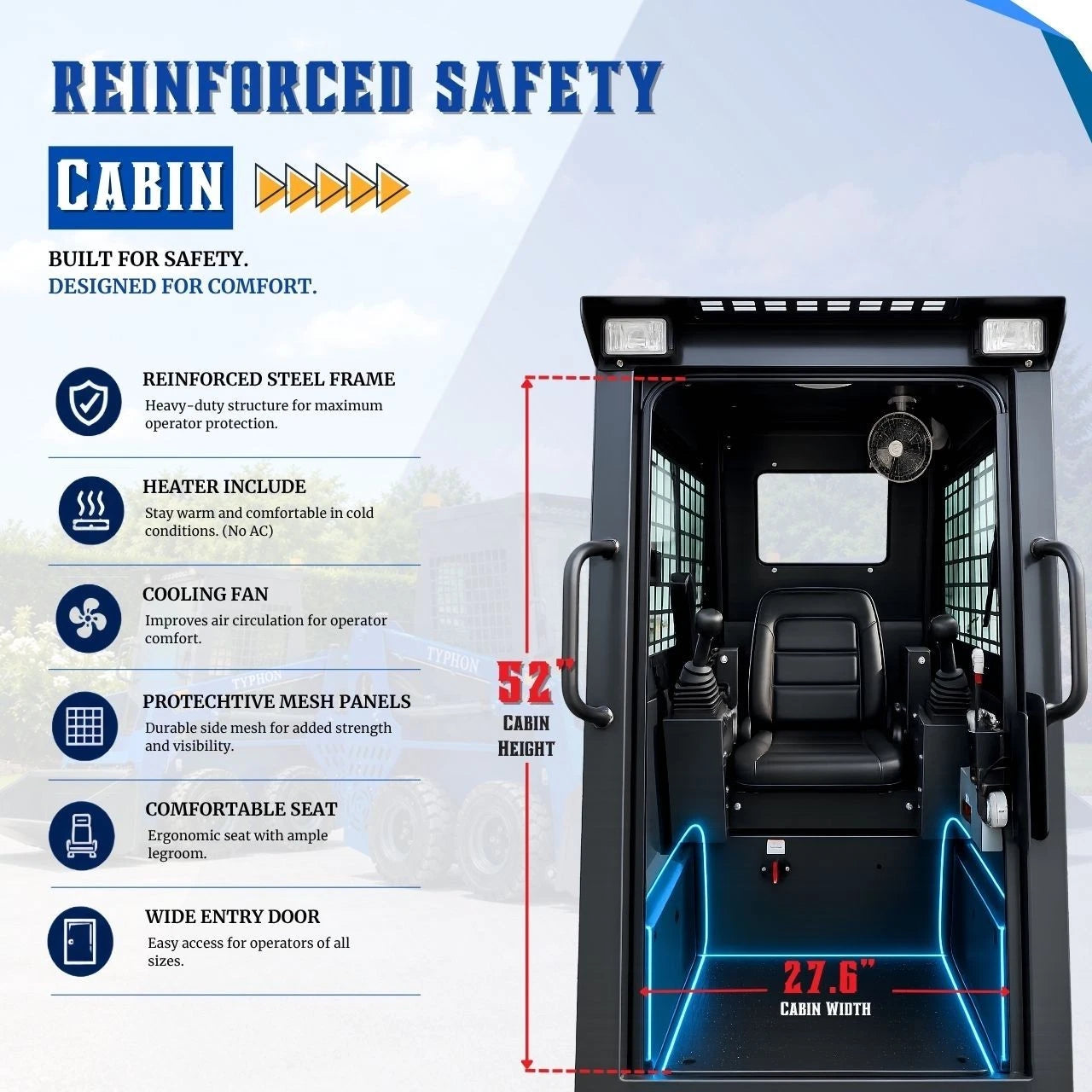

Master tight job sites with the TYPHON STOMP 509 is compact and agile design. Weighing 1.4 tons and just 41.93 inches wide, it navigates narrow spaces effortlessly. It features a 101.18-inch length with the bucket (81.10 inches without), a 120.08-inch overall operating height, and a 76.38-inch cab height. Maneuverability is unmatched with a true zero-turn radius and 360-degree pivoting. The front turning radius is 61.42 inches (40.35 without bucket), and the rear is 44.88 inches, plus a 44.09-inch rear axle to bumper distance. Inside, the cabin offers a comfortable 27.56-inch width and 52-inch height. A 20° climbing angle inclines with stability from a 29.92-inch wheelbase, 6.5-inch tires, and 10-inch rims.

2. Powerful Engine

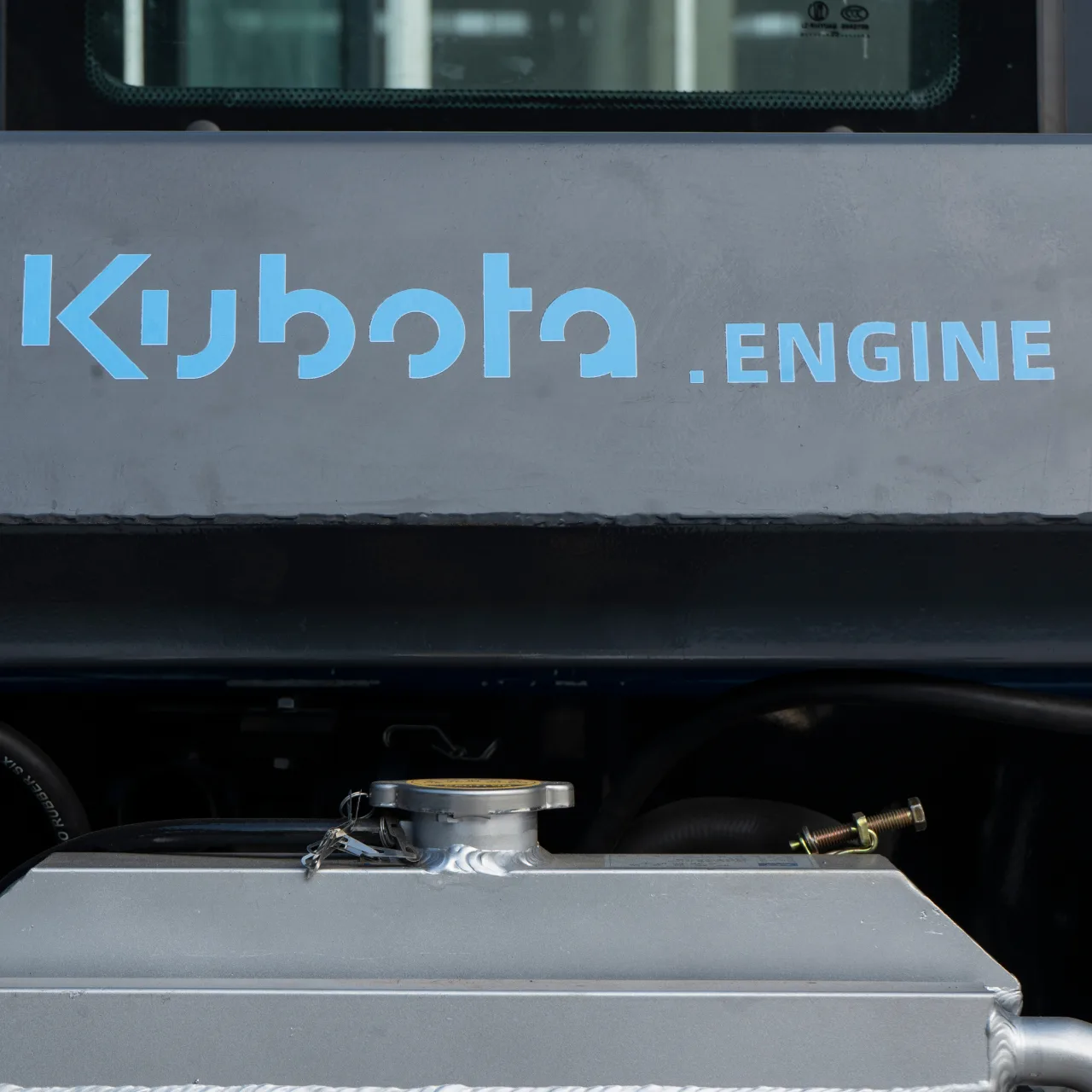

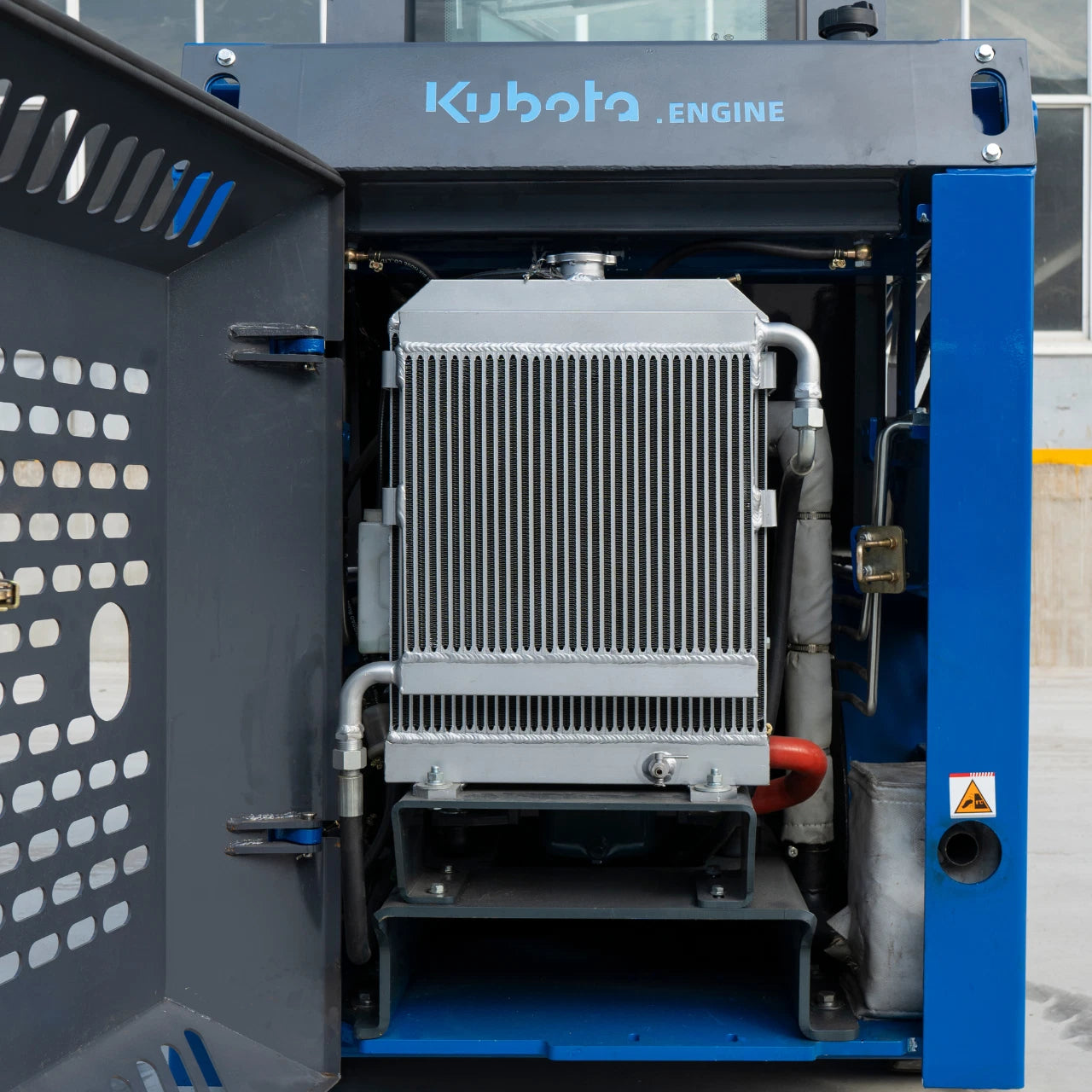

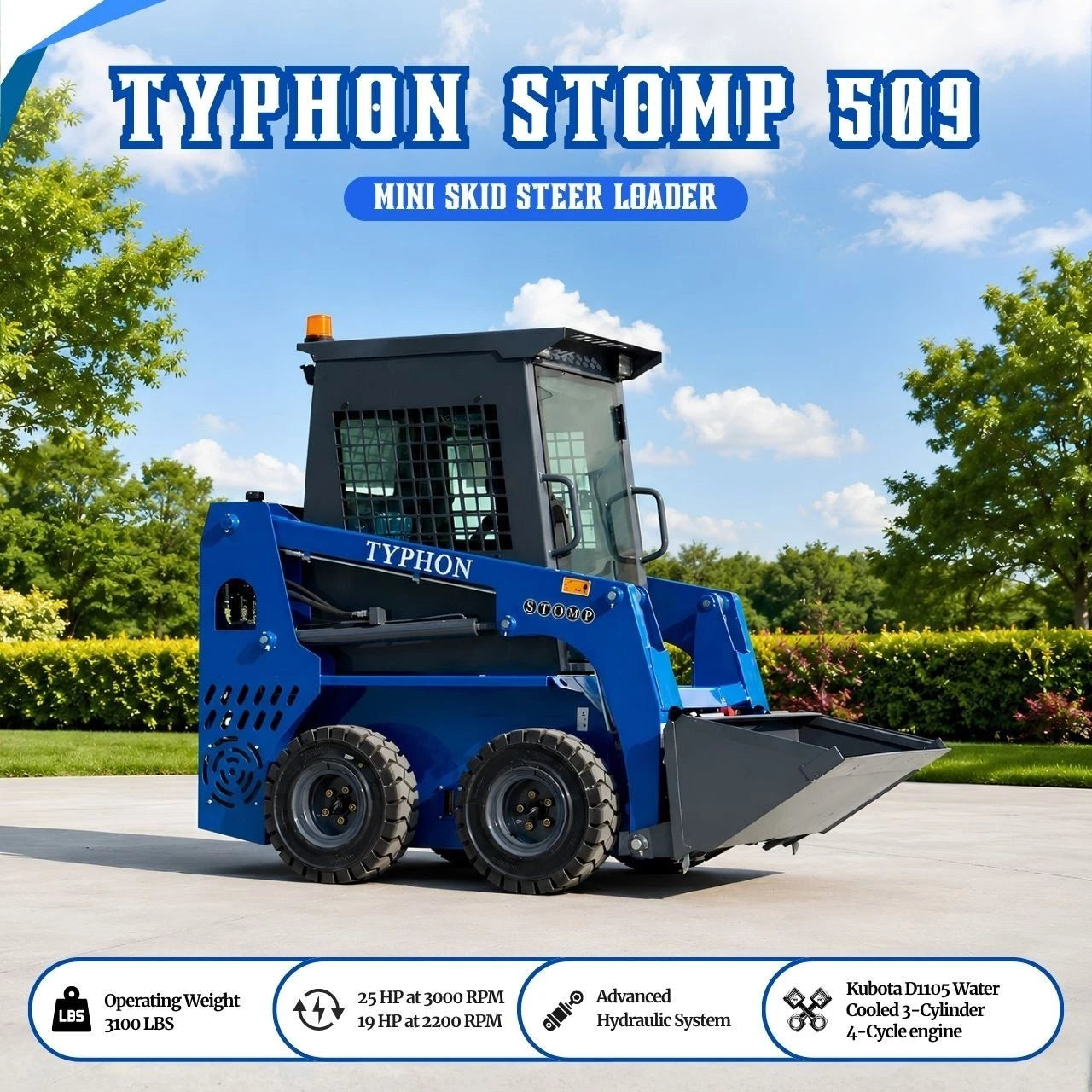

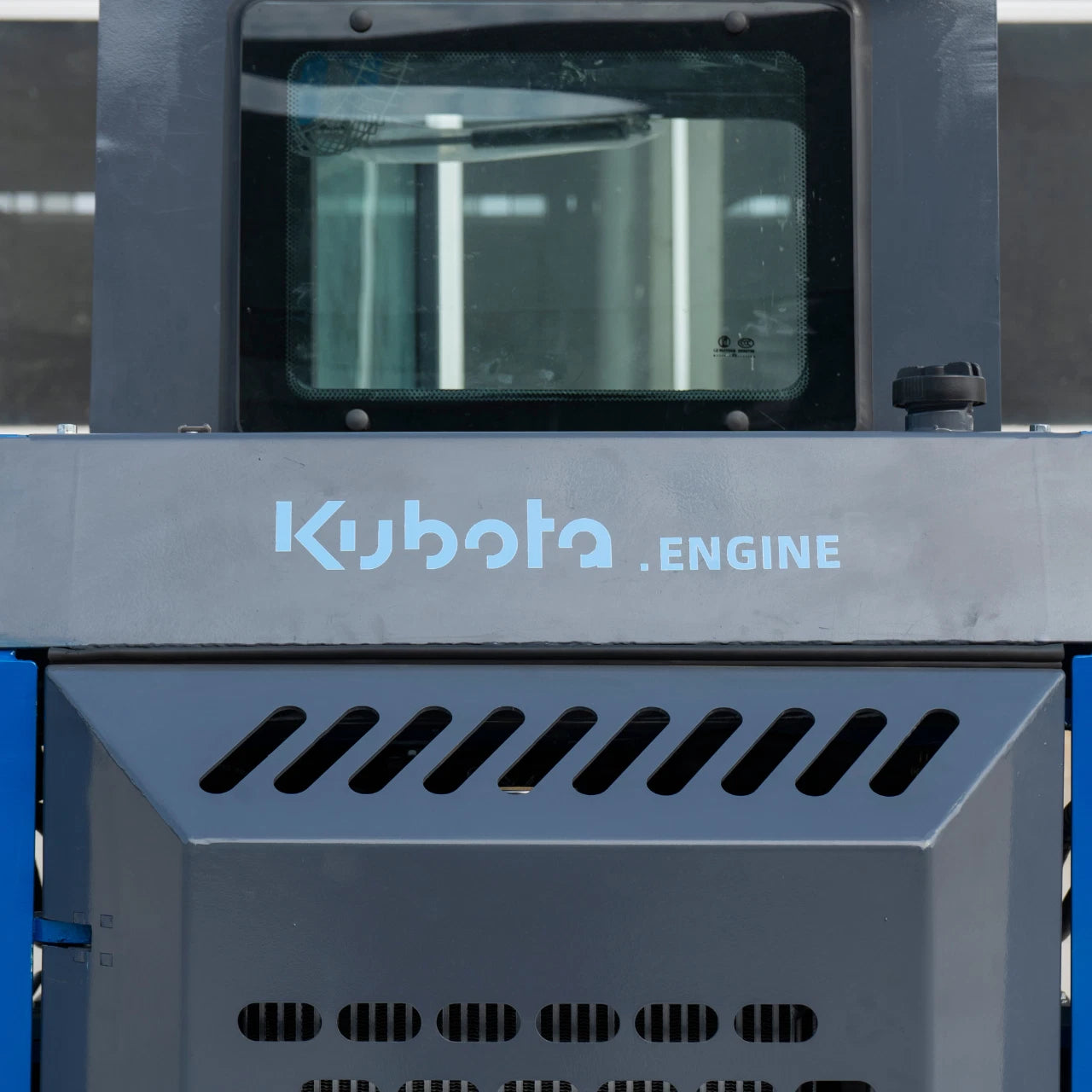

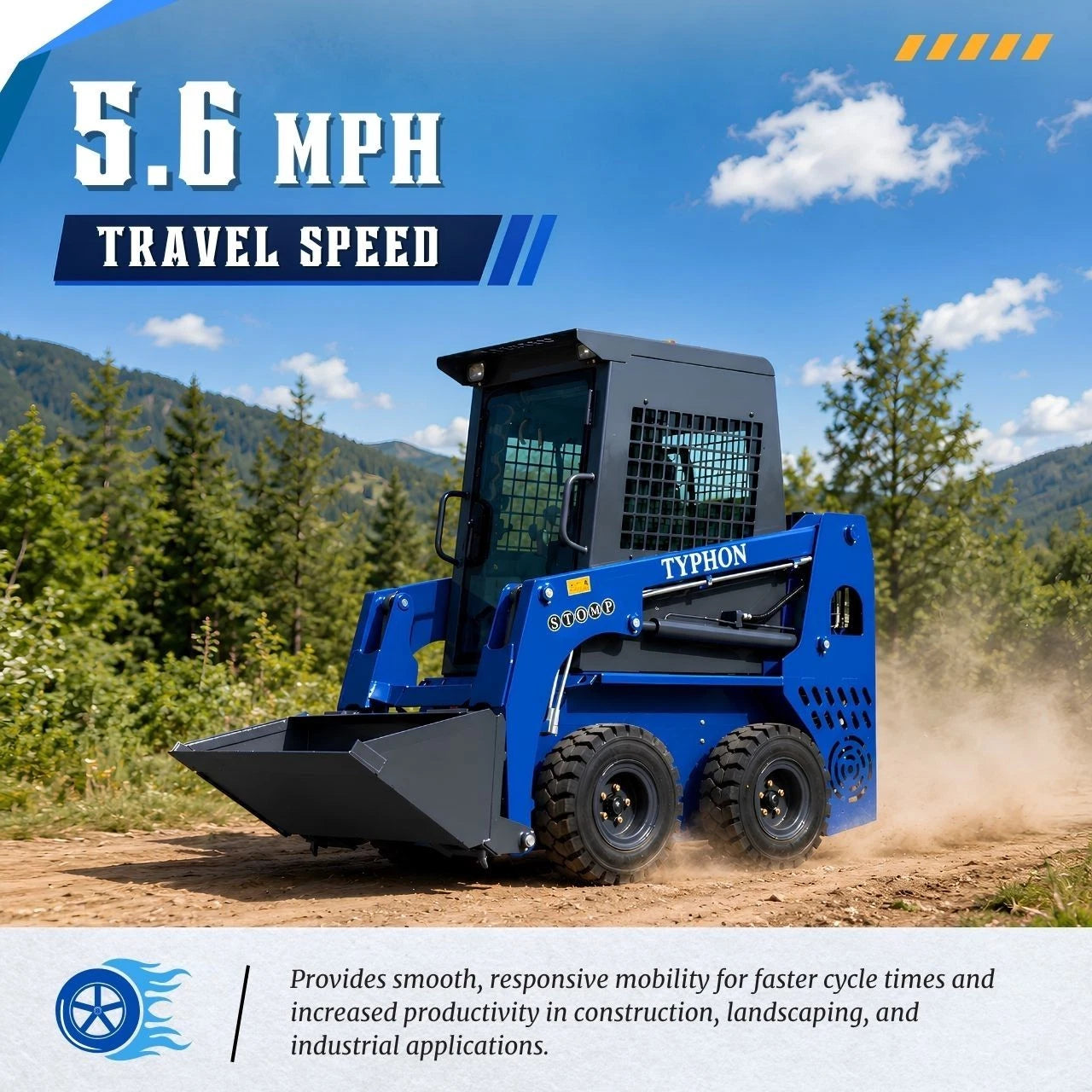

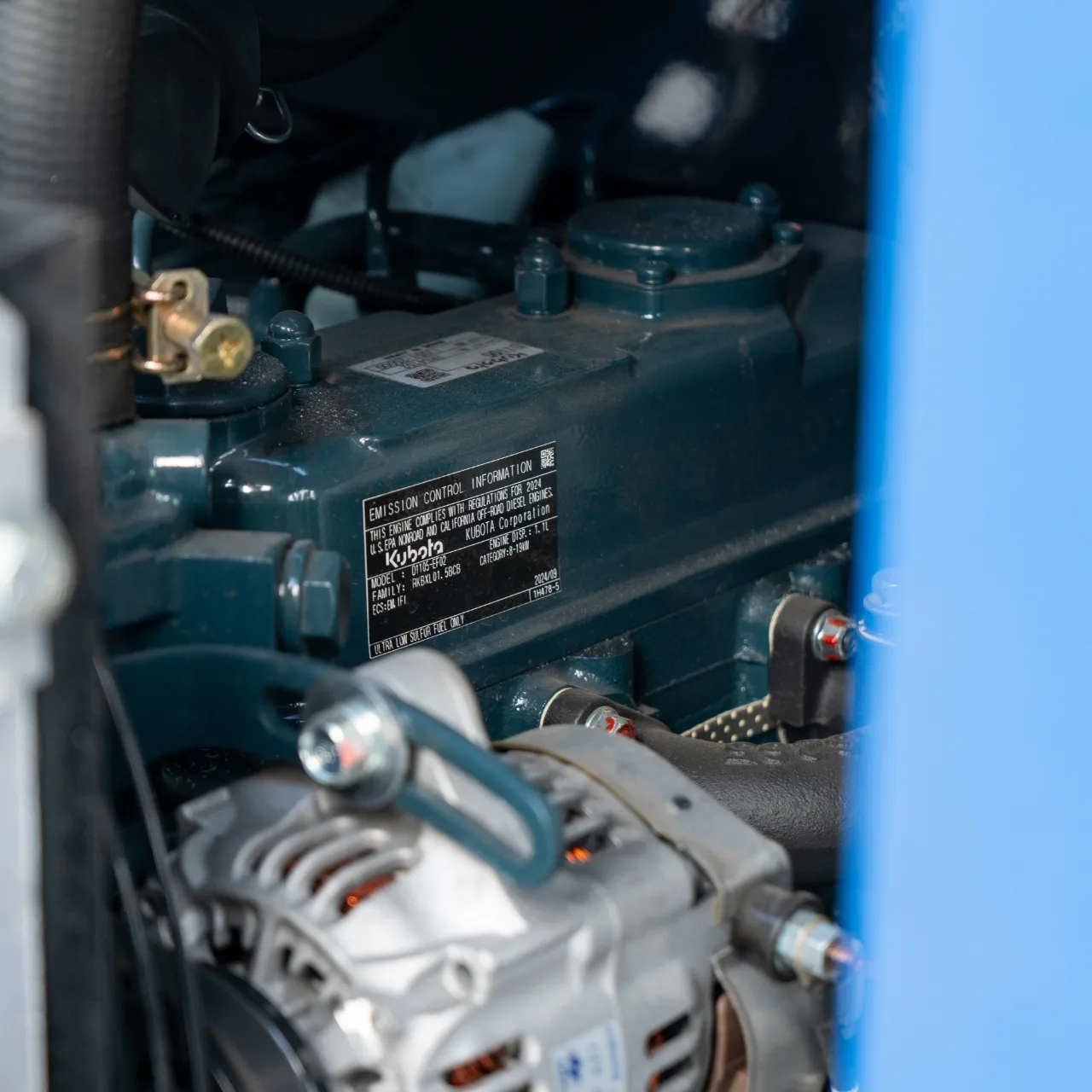

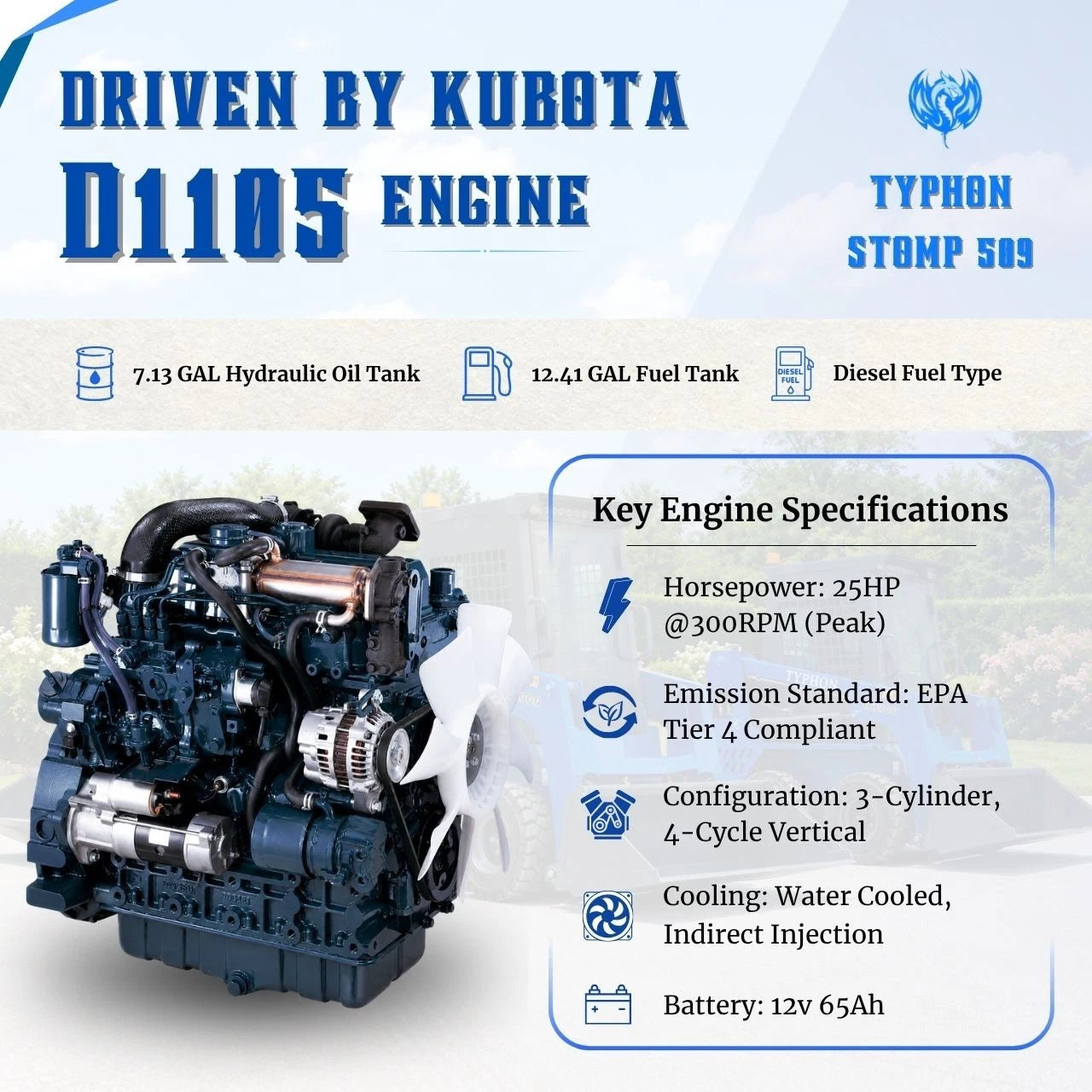

Experience powerful performance with the TYPHON STOMP 509 Mini Skid Steer! Driven by a water-cooled Kubota D1105 engine, this 3-cylinder, 4-cycle vertical powerhouse delivers 25 hp at 3000 RPM and 19 hp at 2200 RPM while meeting EPA Tier 4 standards. Work longer with a 12.42-gal fuel tank and 7.13-gal hydraulic tank. Powered by a 12V 65Ah battery, it reaches a max travel speed of 5.59 mph. Reliable strength for any job!

3. Efficient Digging Capability

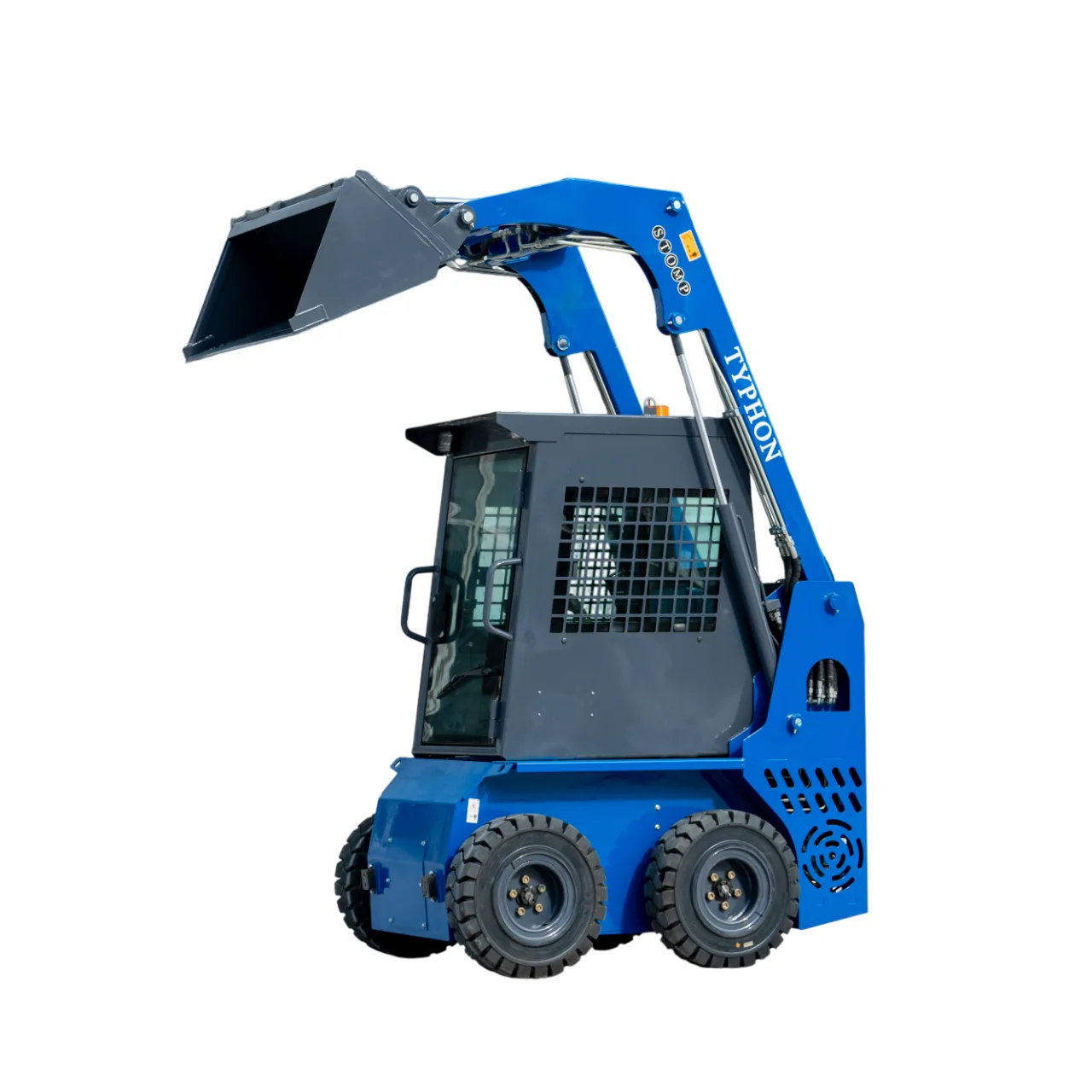

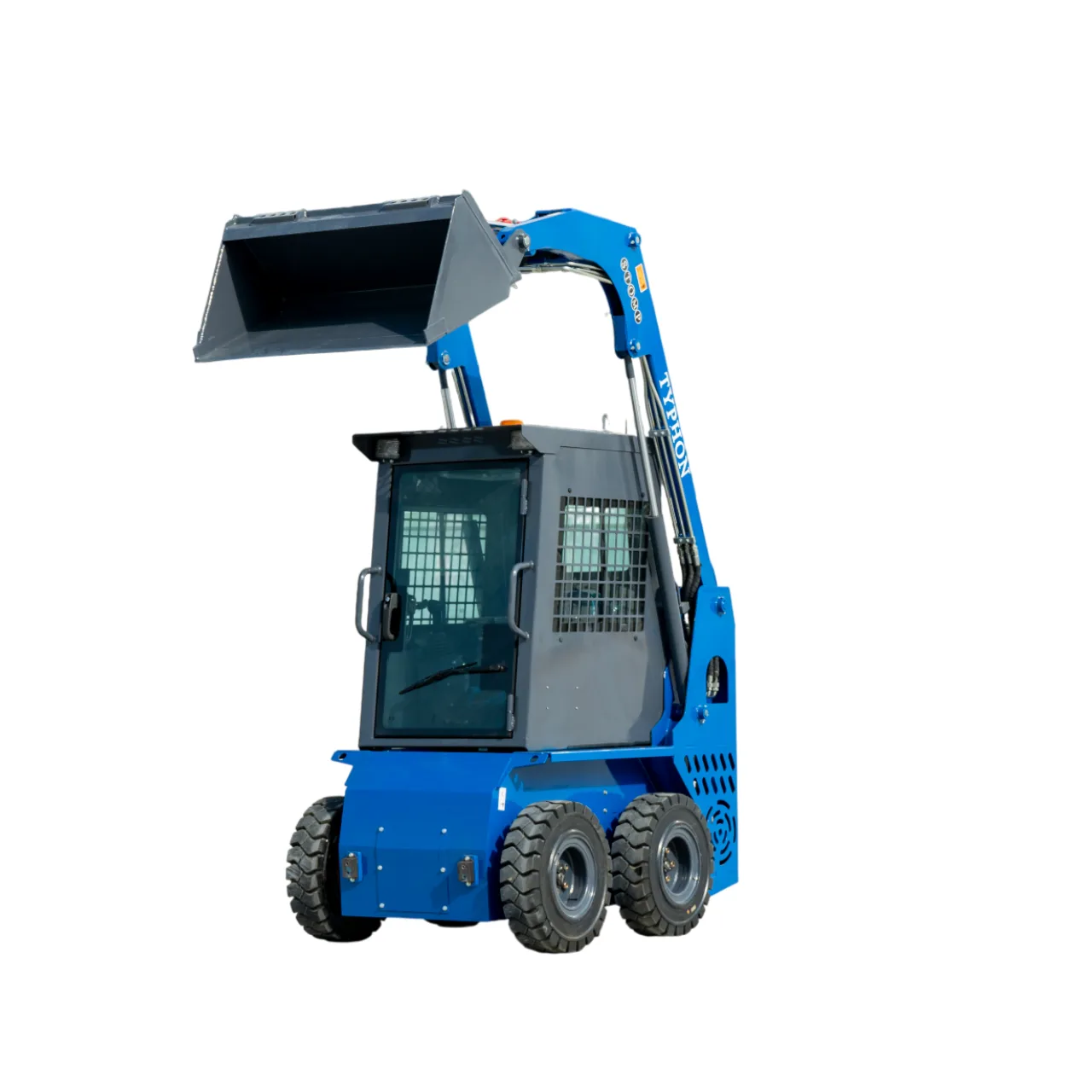

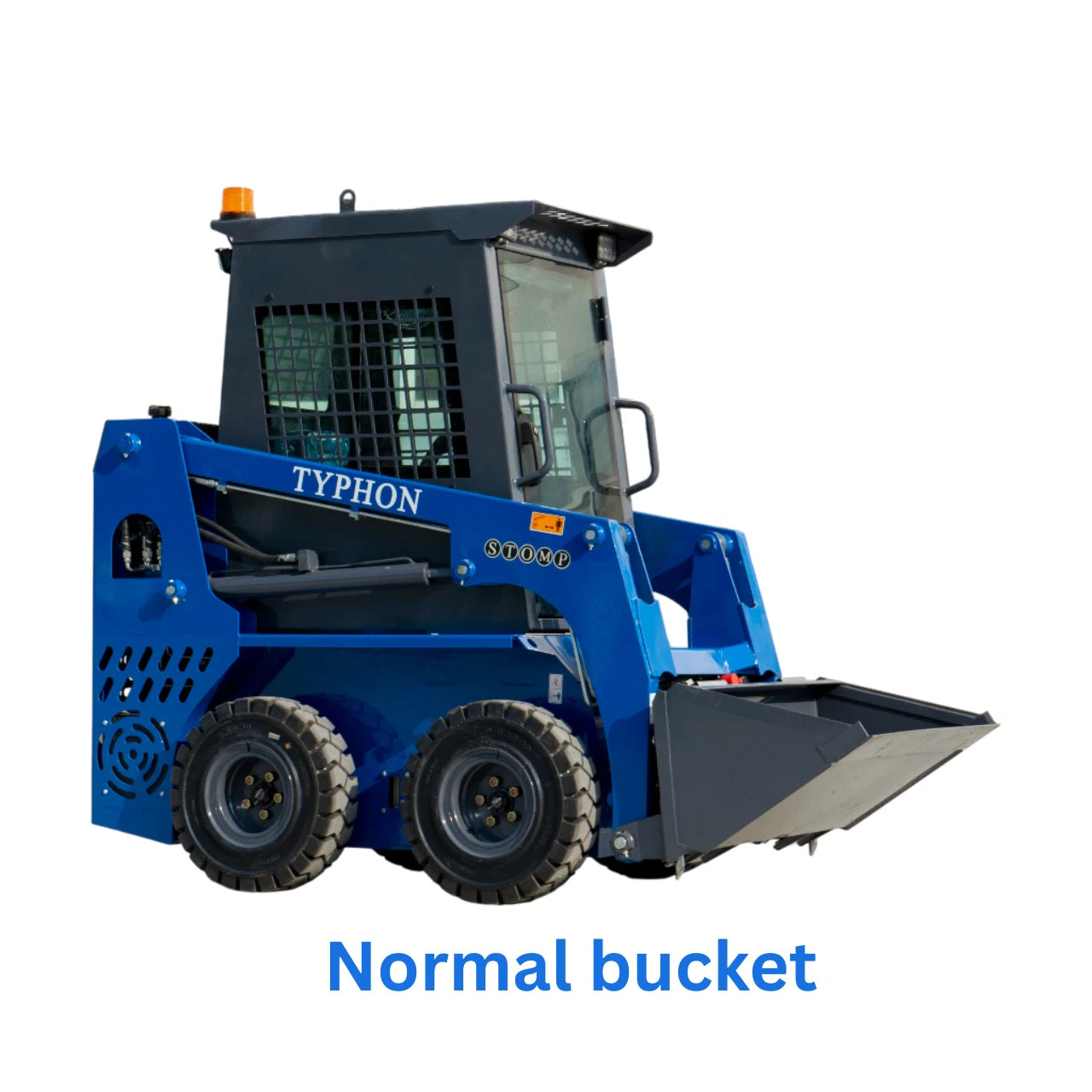

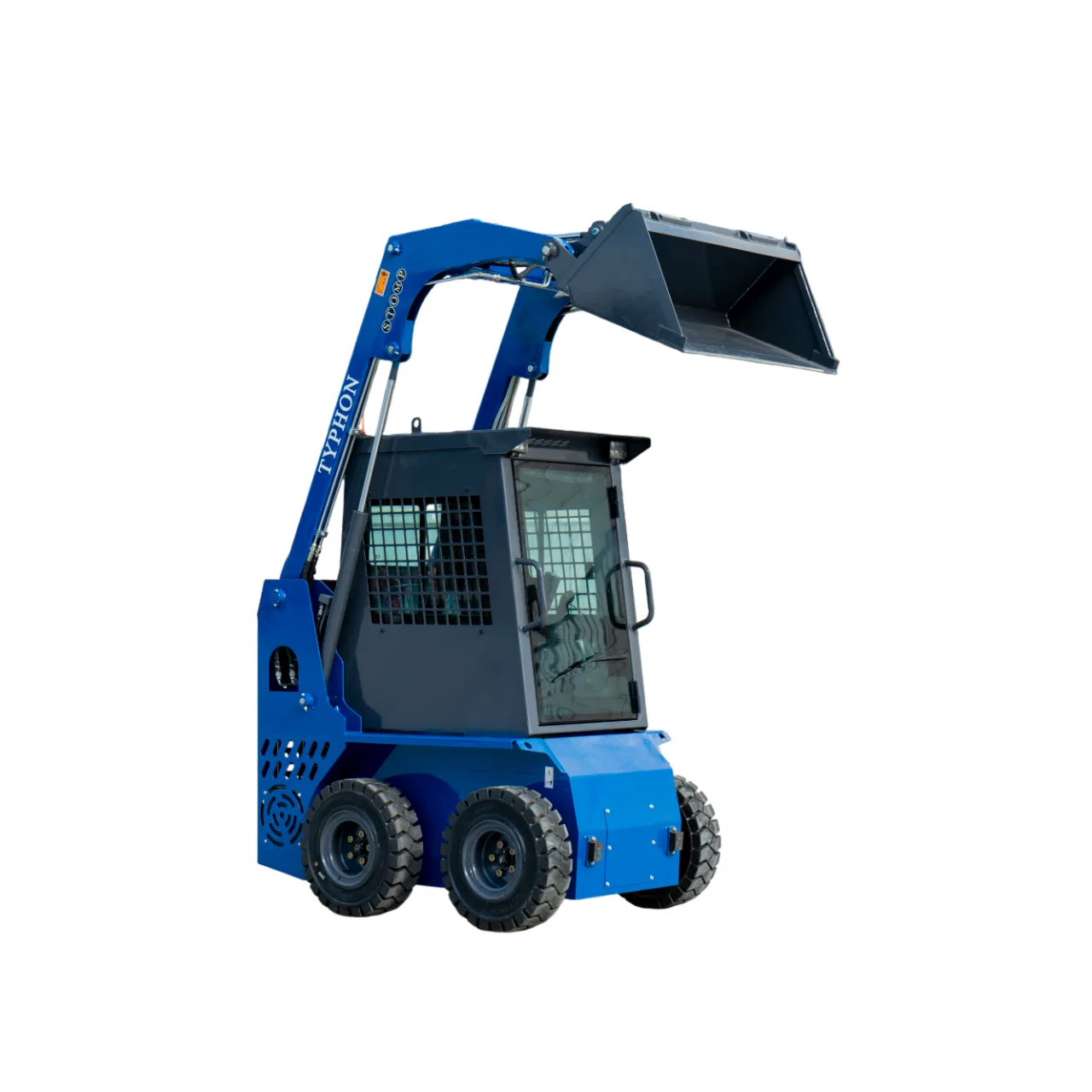

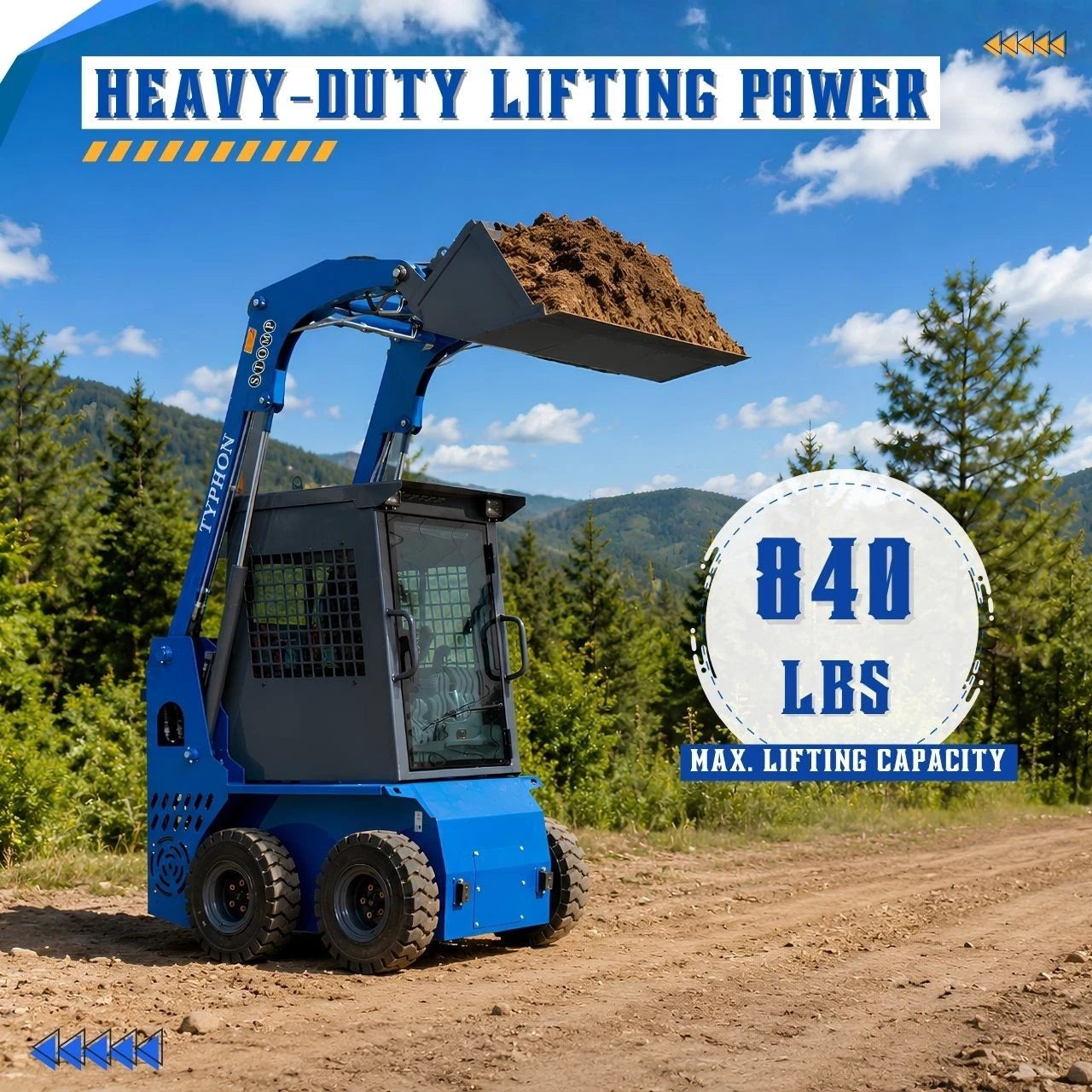

Unleash efficient digging capability with our mini skid steer! Move more material faster with an 840 lbs rated load capacity, 4.24 ft³ bucket capacity, and 39.76-inch bucket width. Enjoy precise unloading with an 84.65-inch dumping height, 22.05-inch reach, and 23° dumping angle at max height. Securely carry loads with a 33° rollback on the ground and 45° at full height. Compact, powerful, and built for maximum productivity!

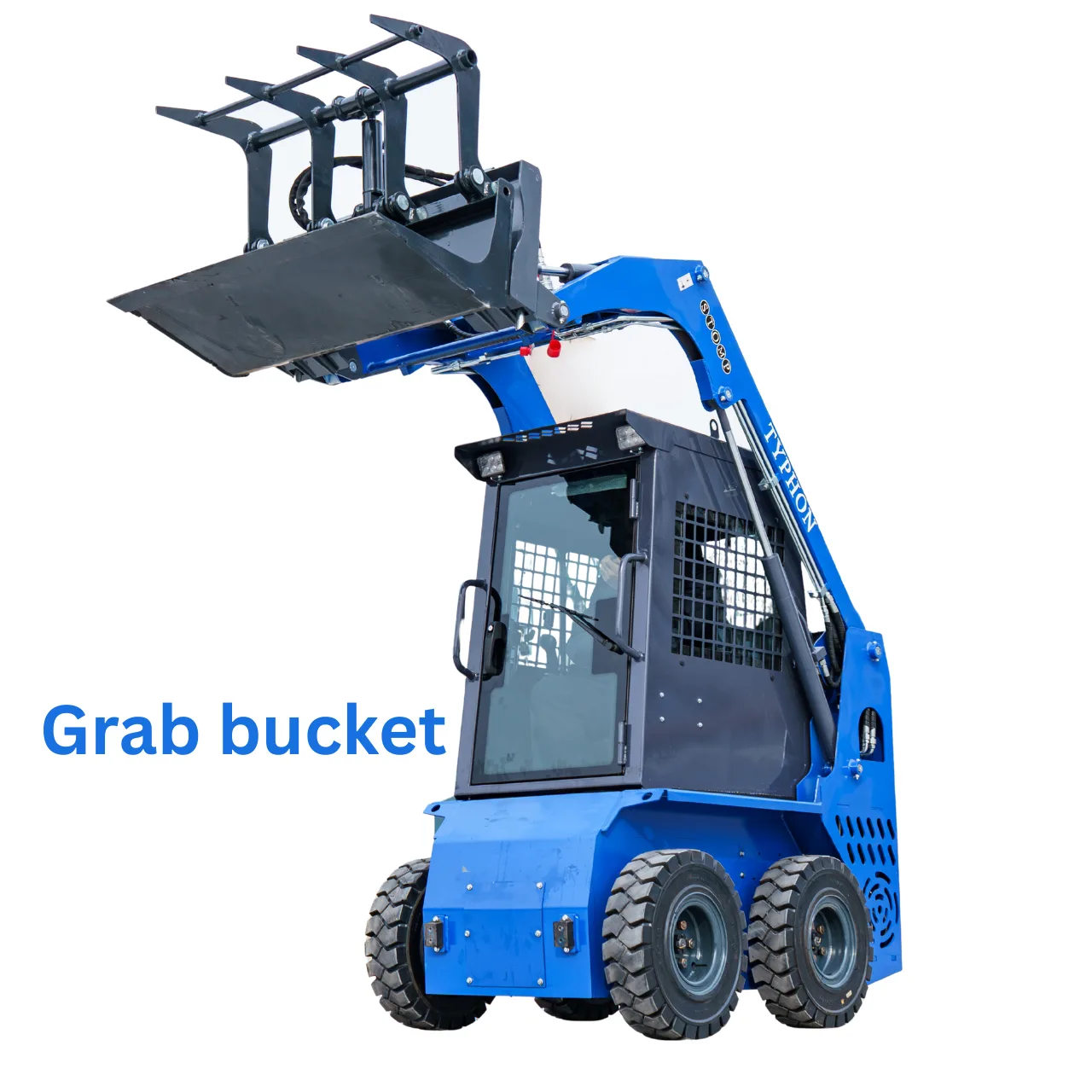

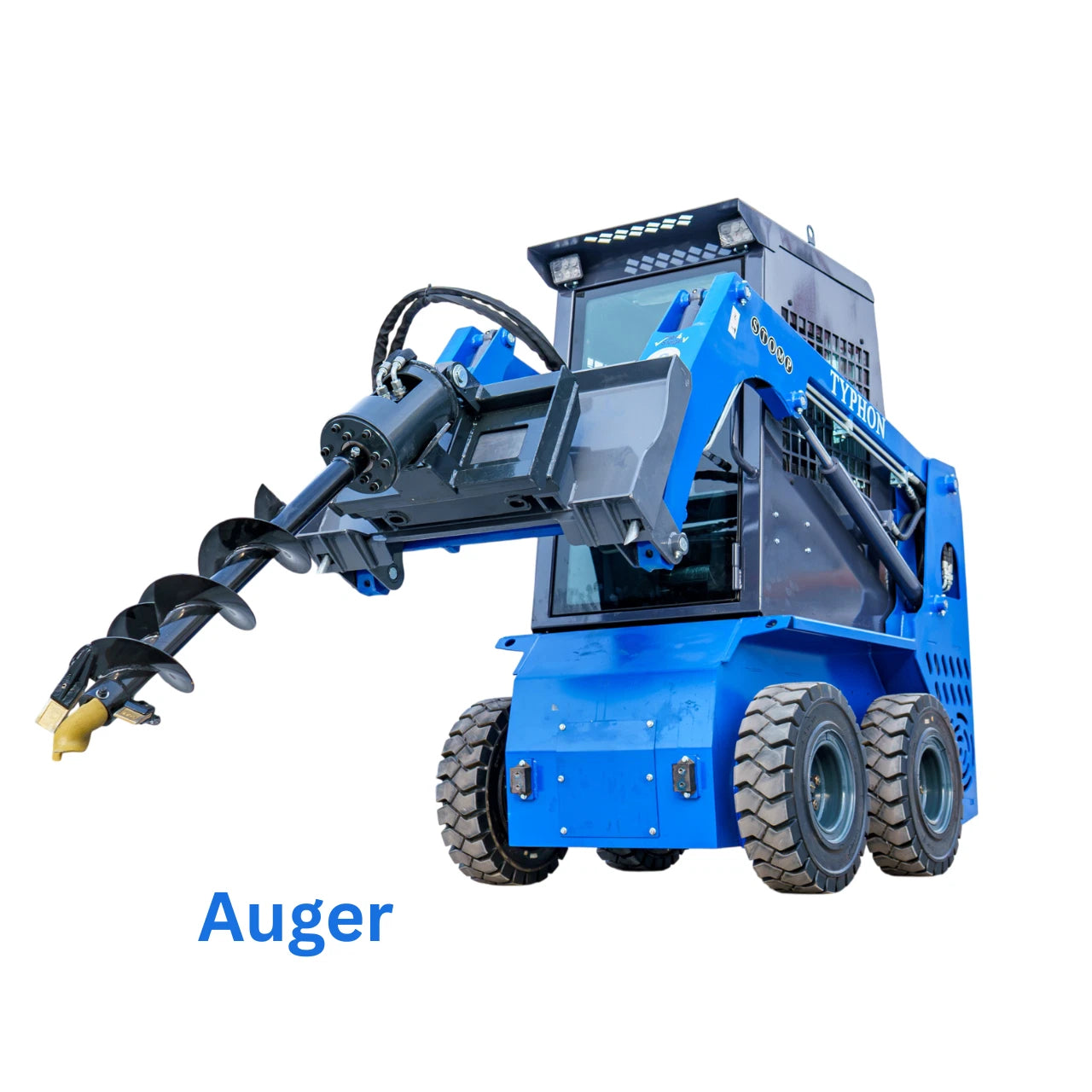

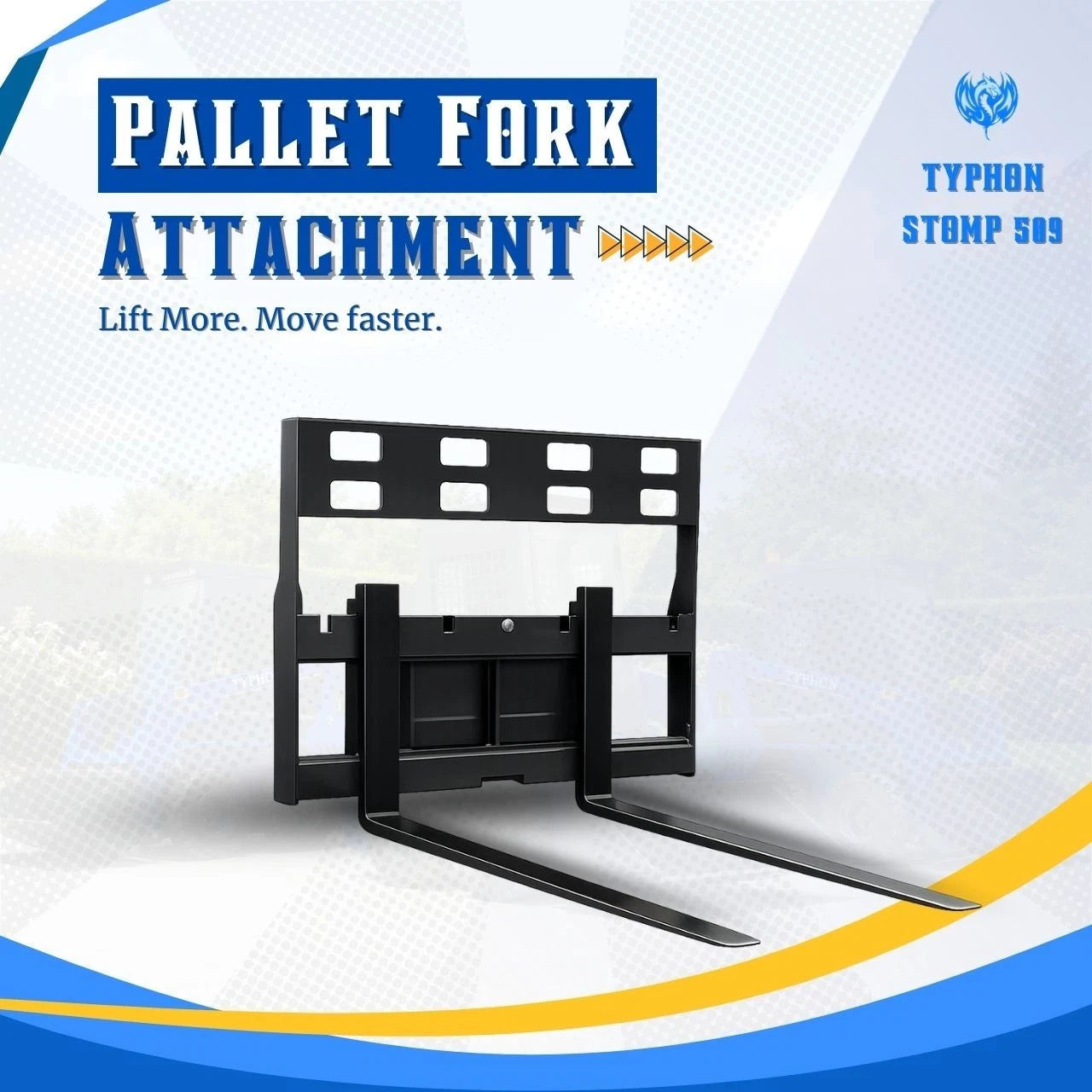

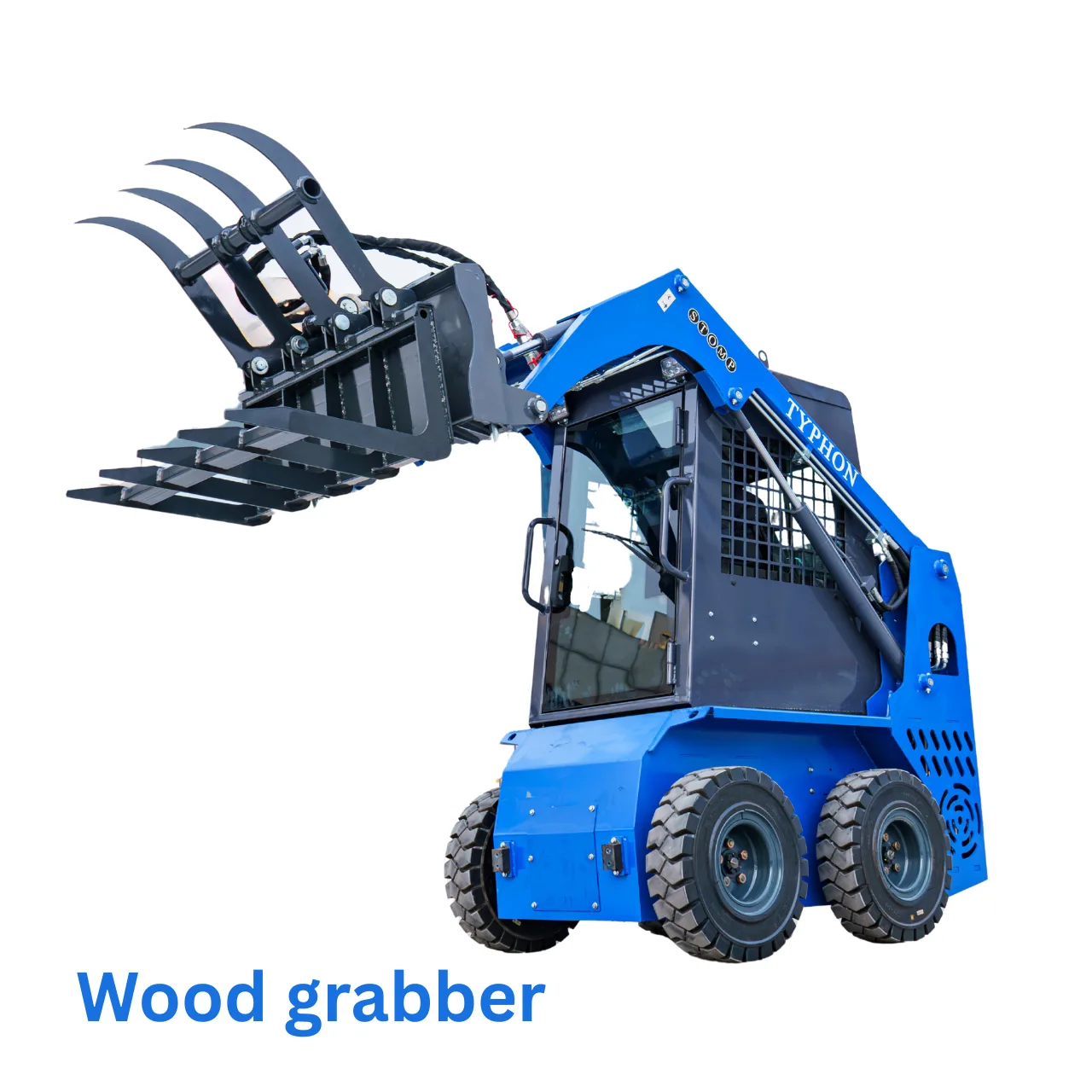

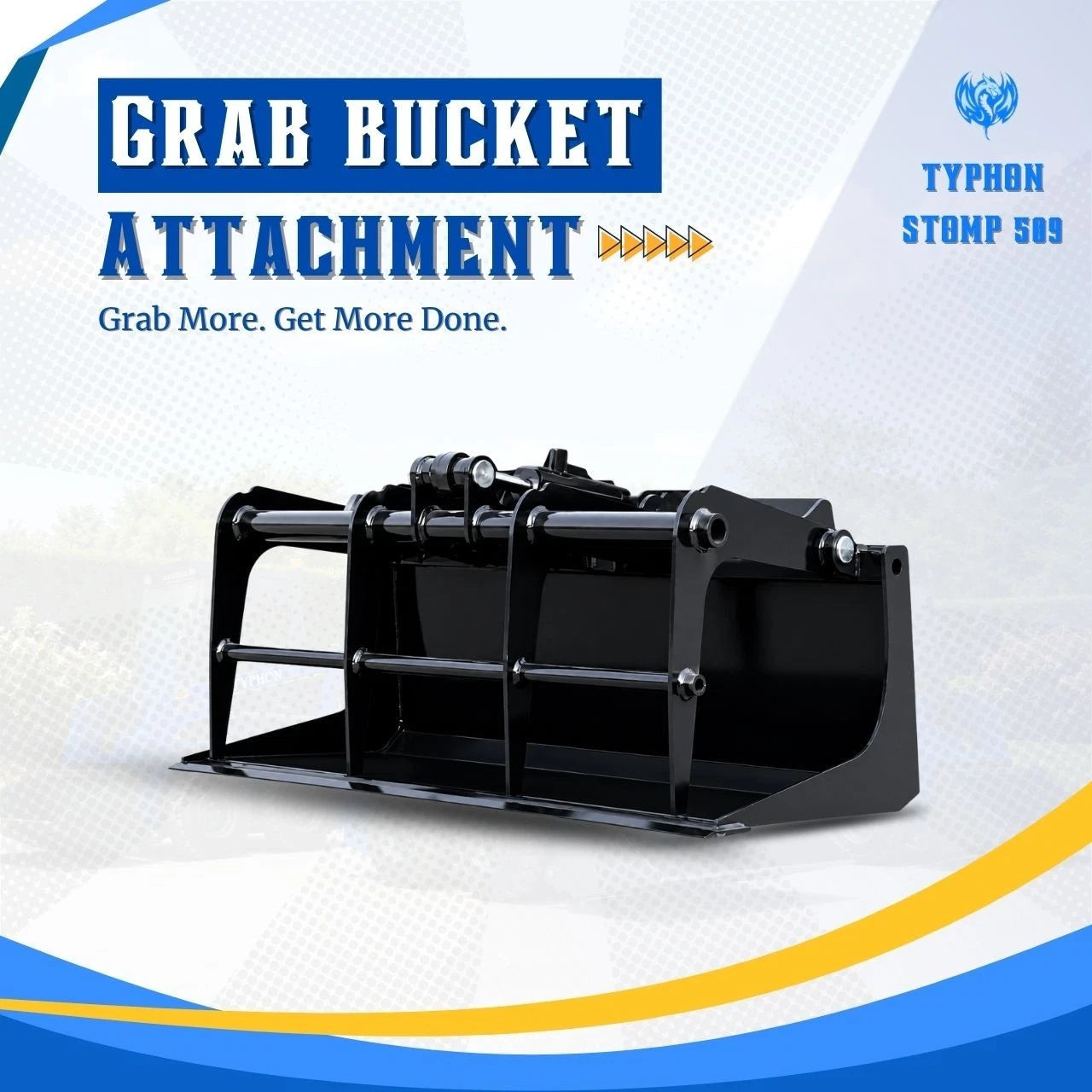

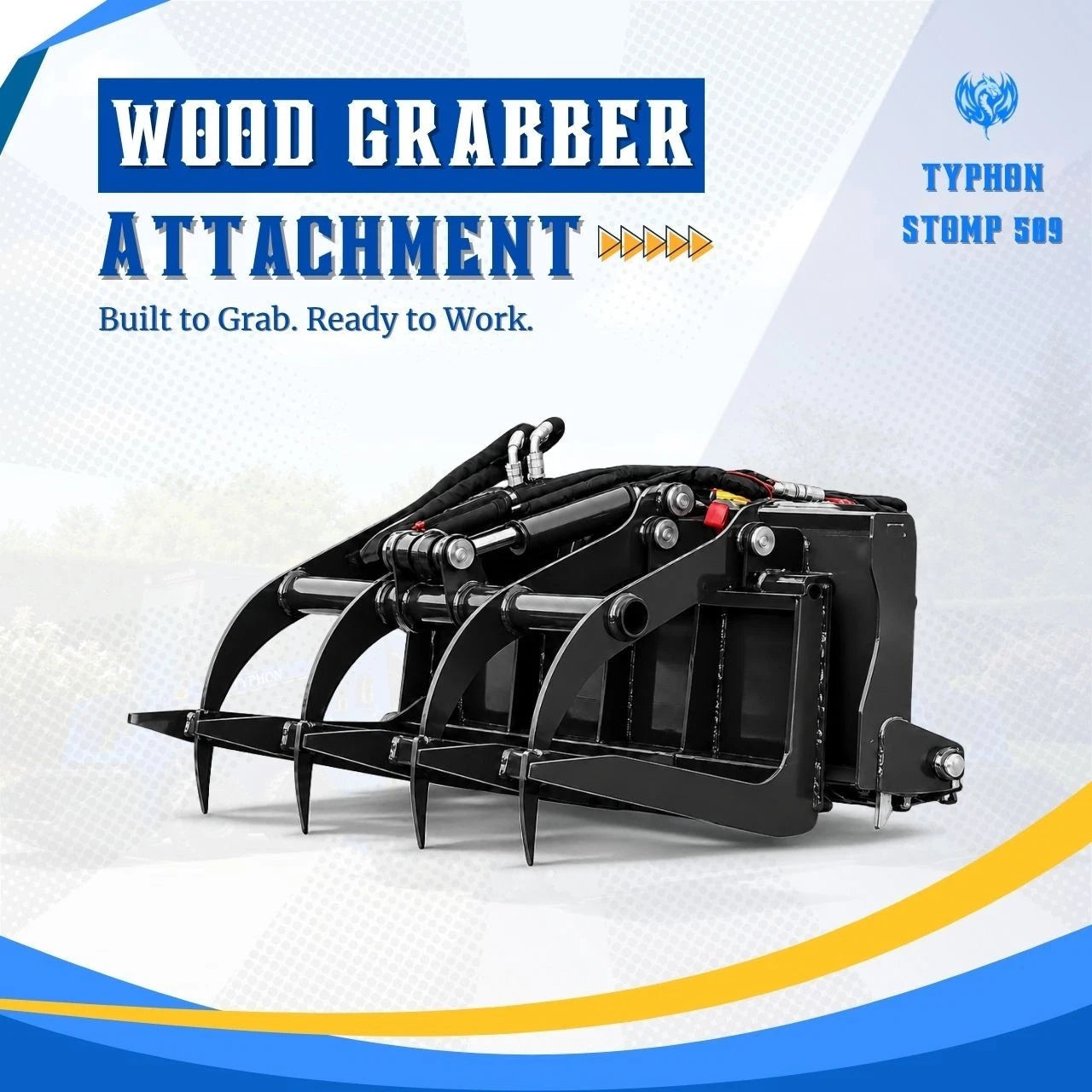

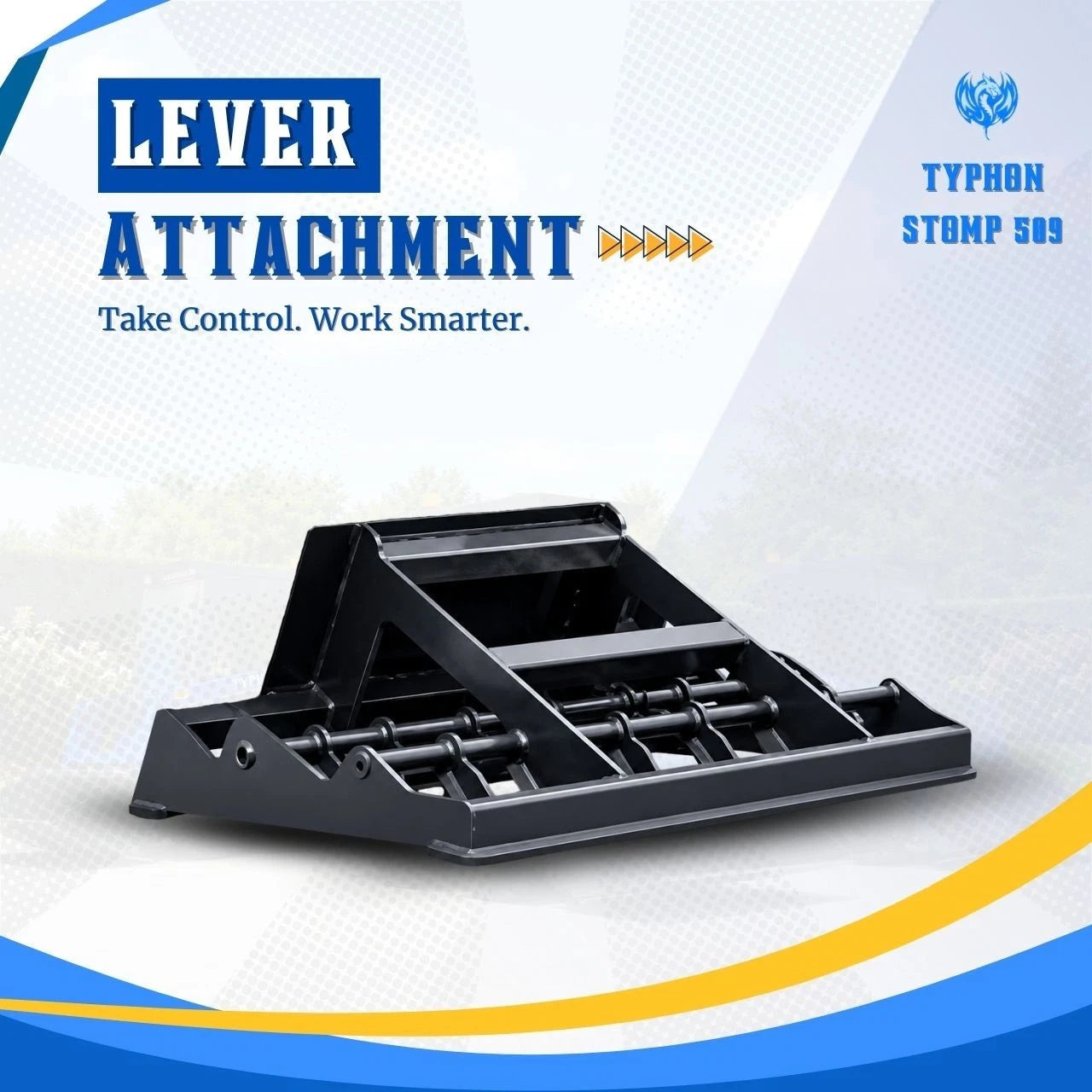

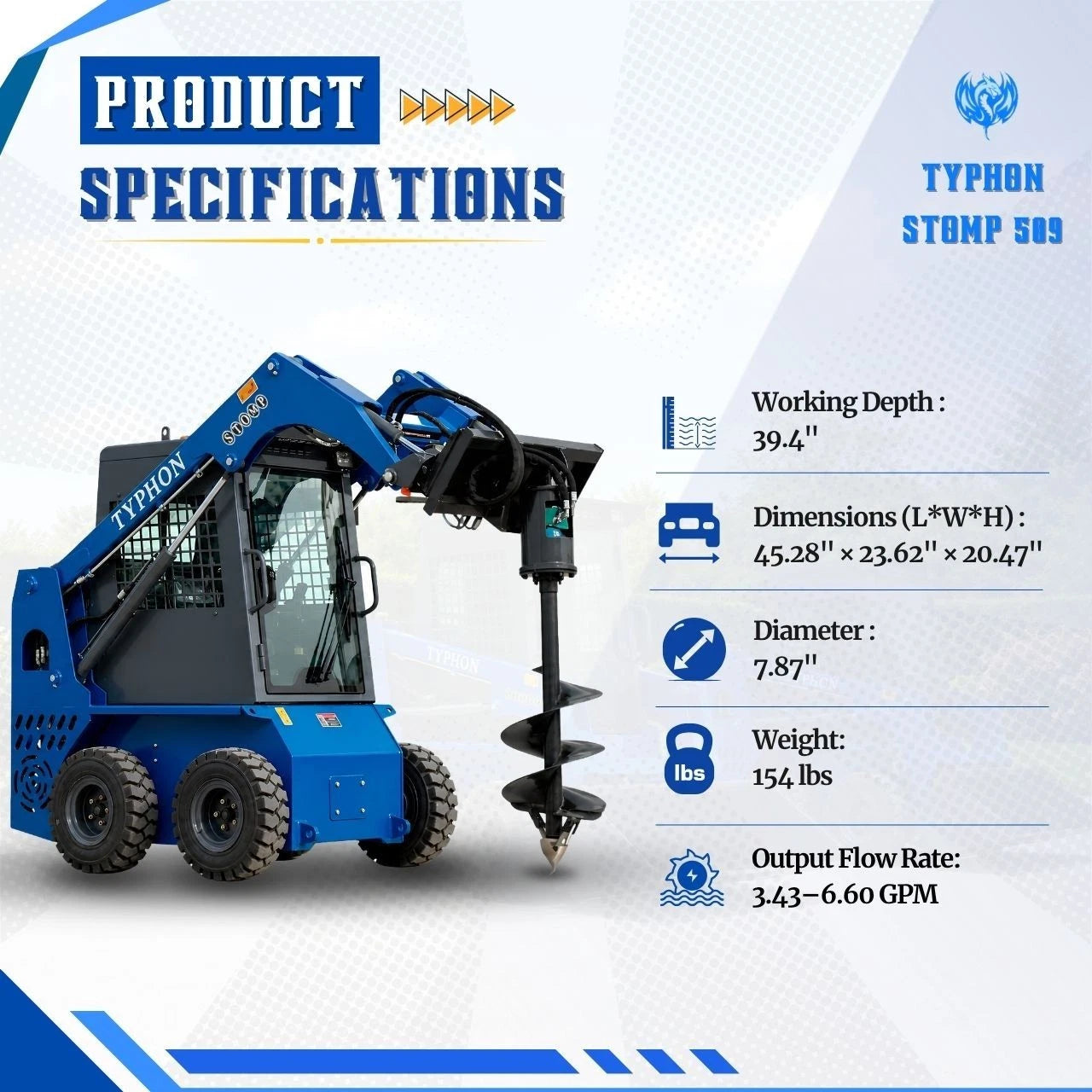

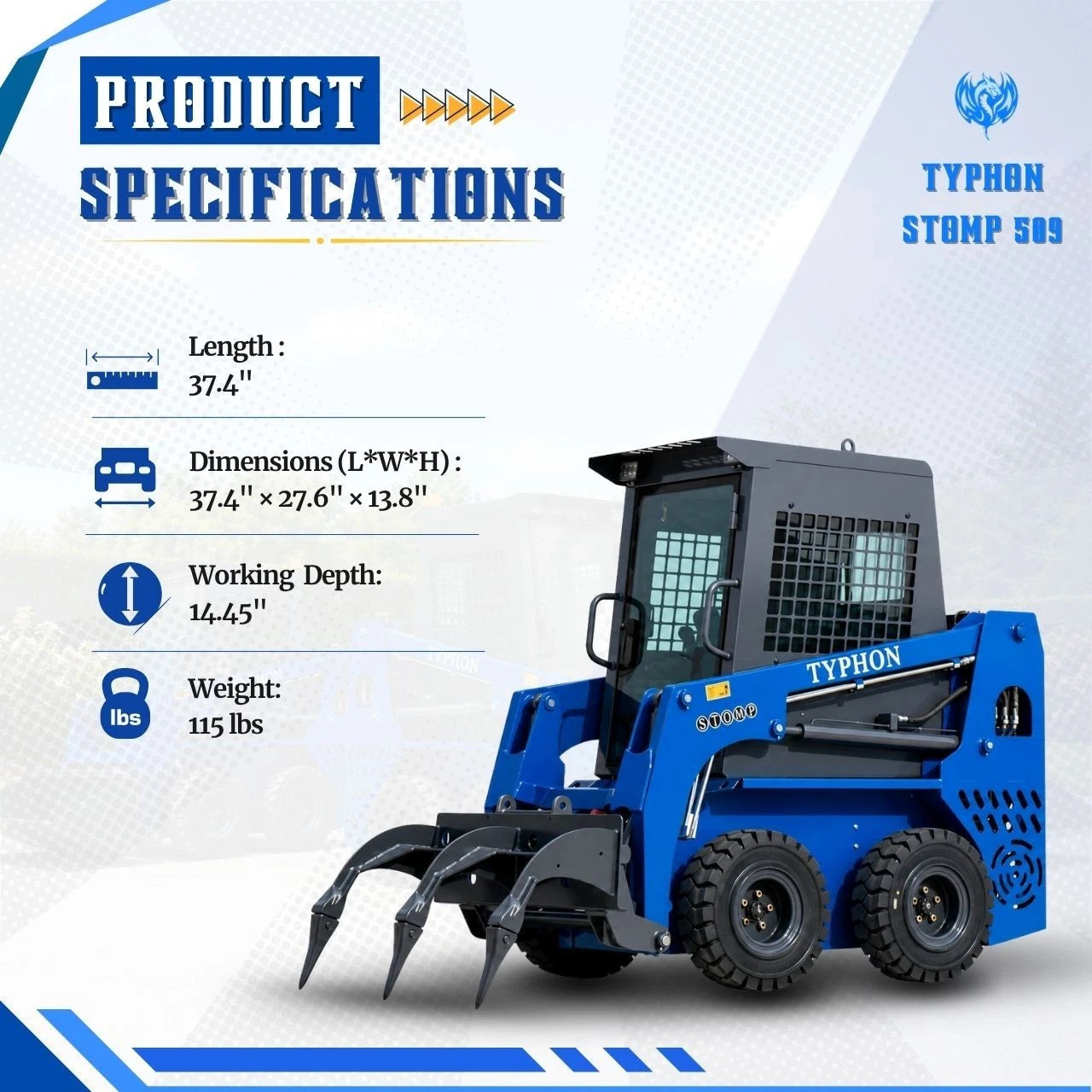

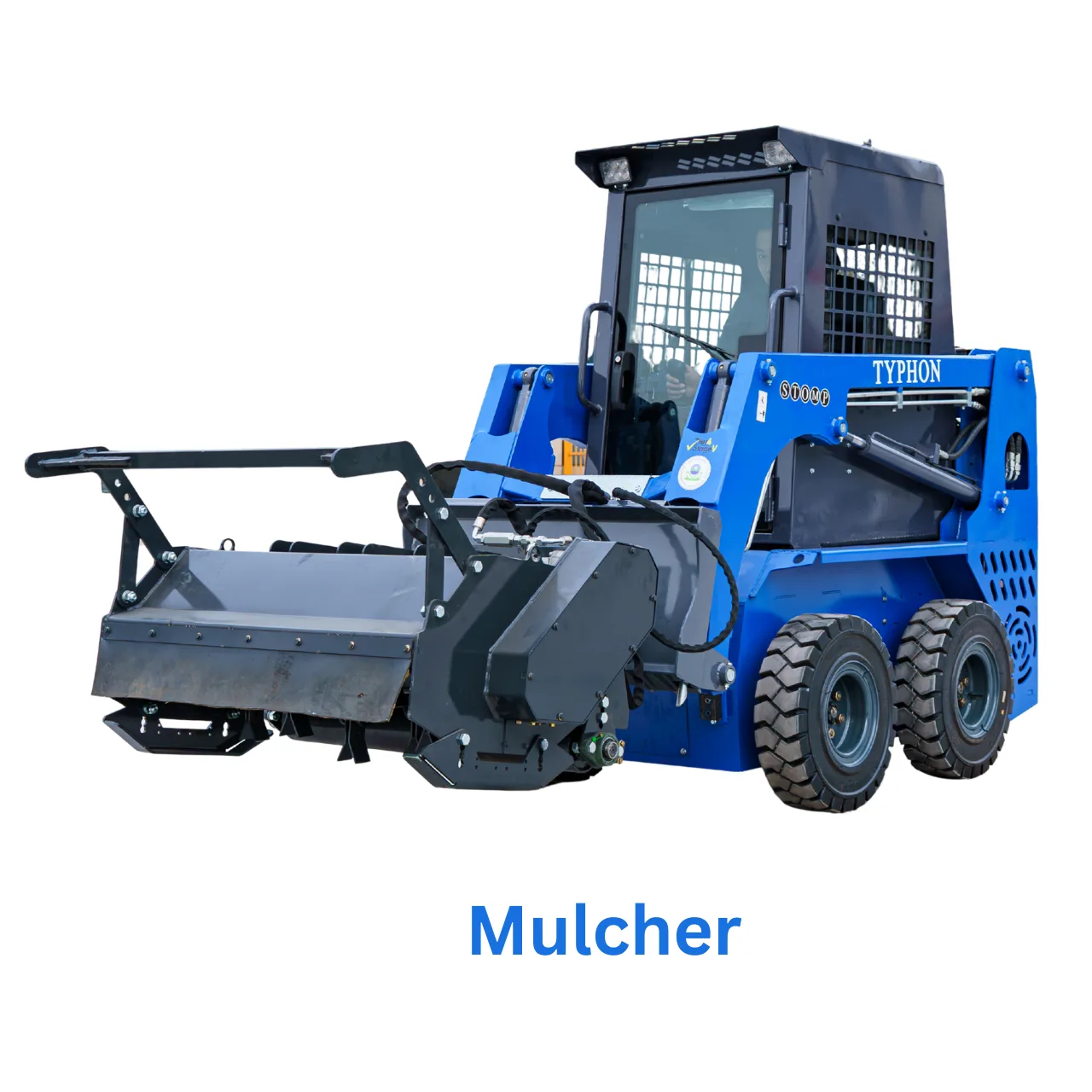

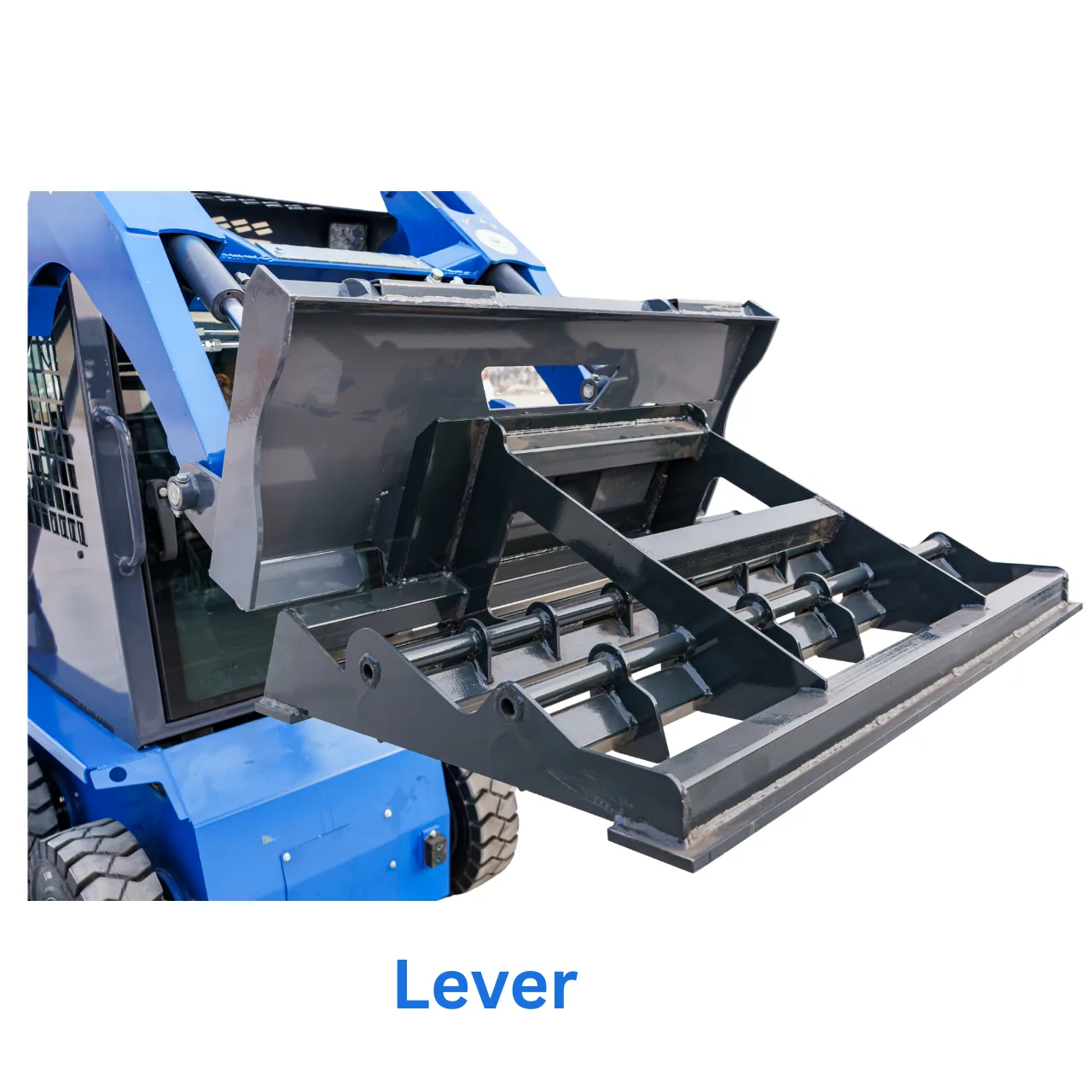

4. Customer Selectable Attachment Option

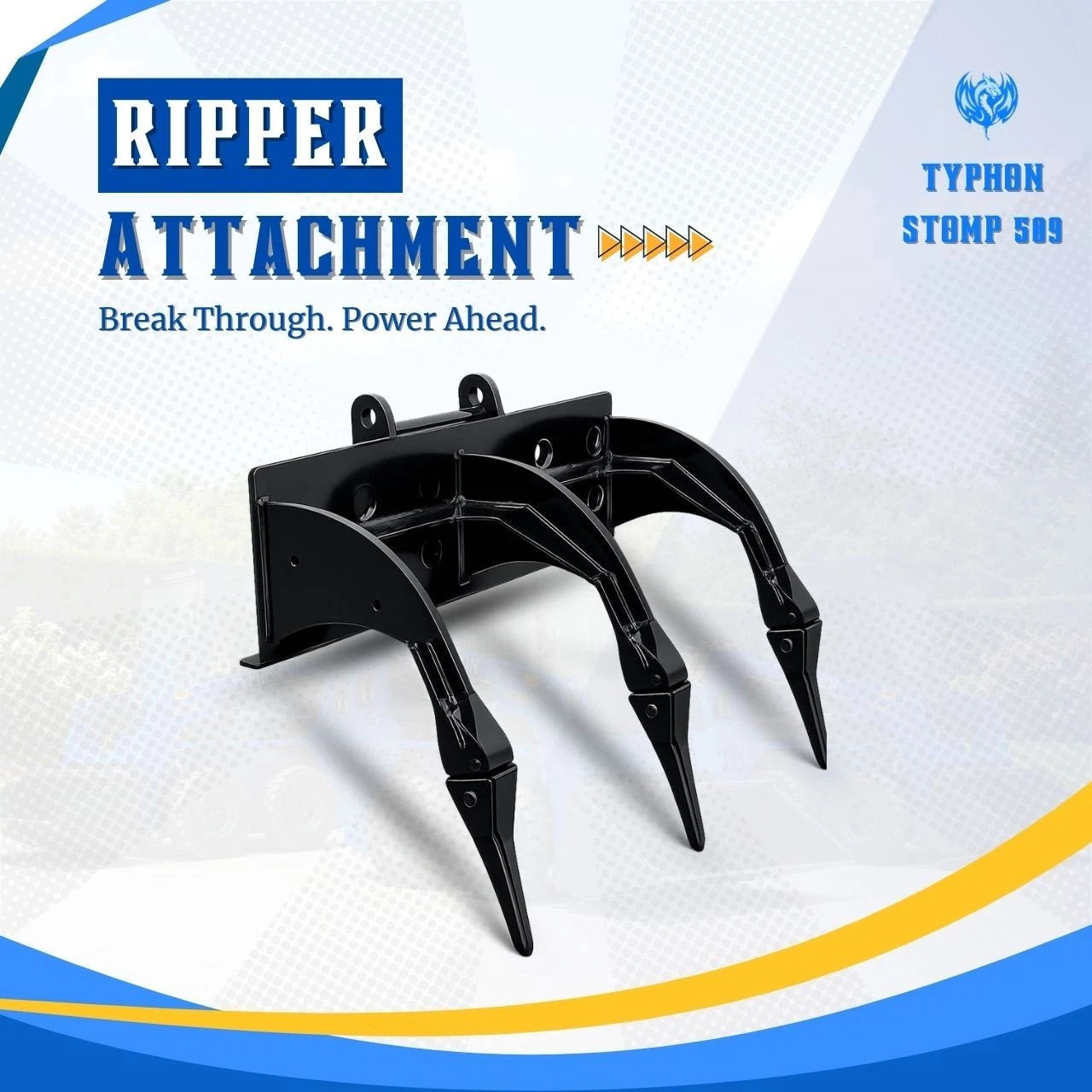

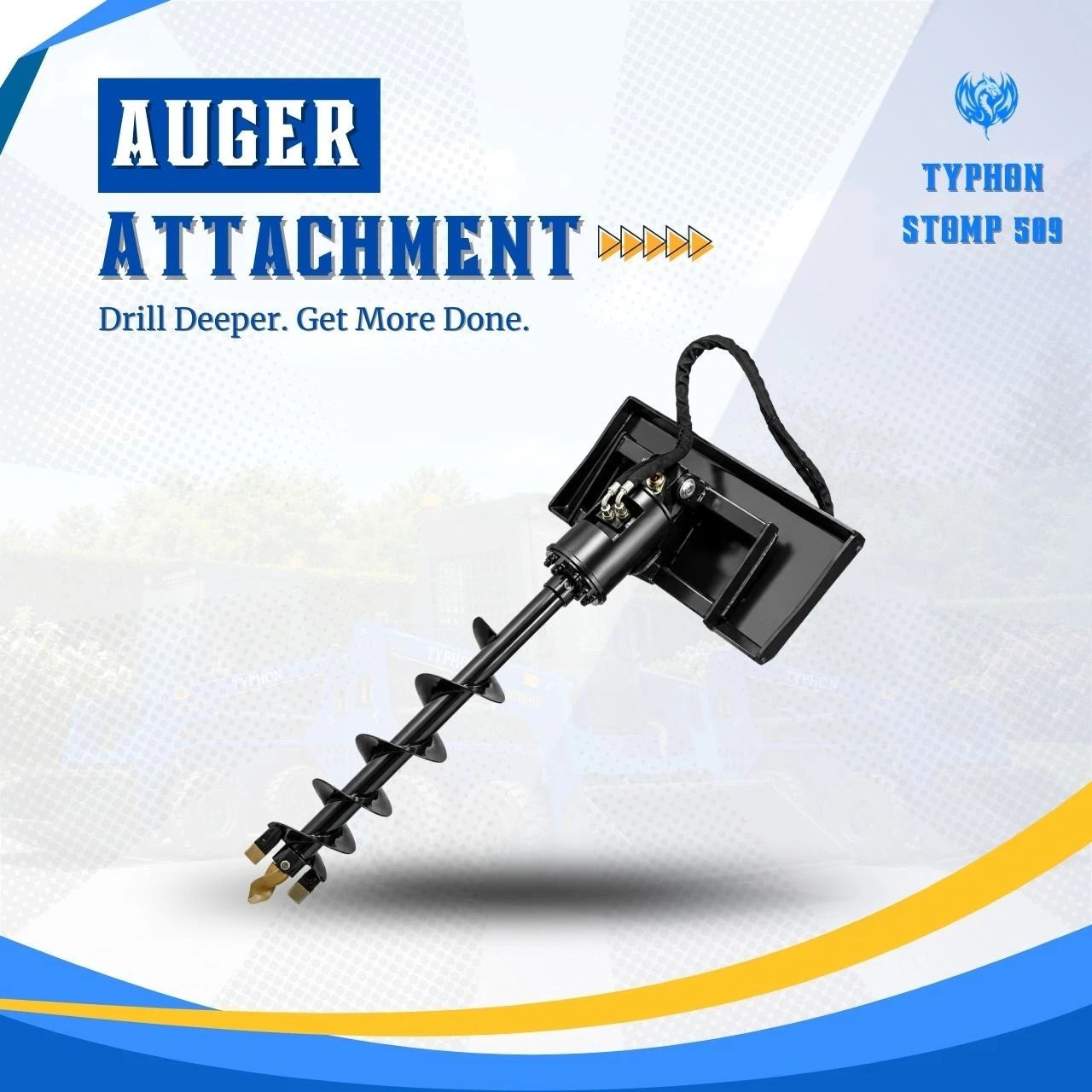

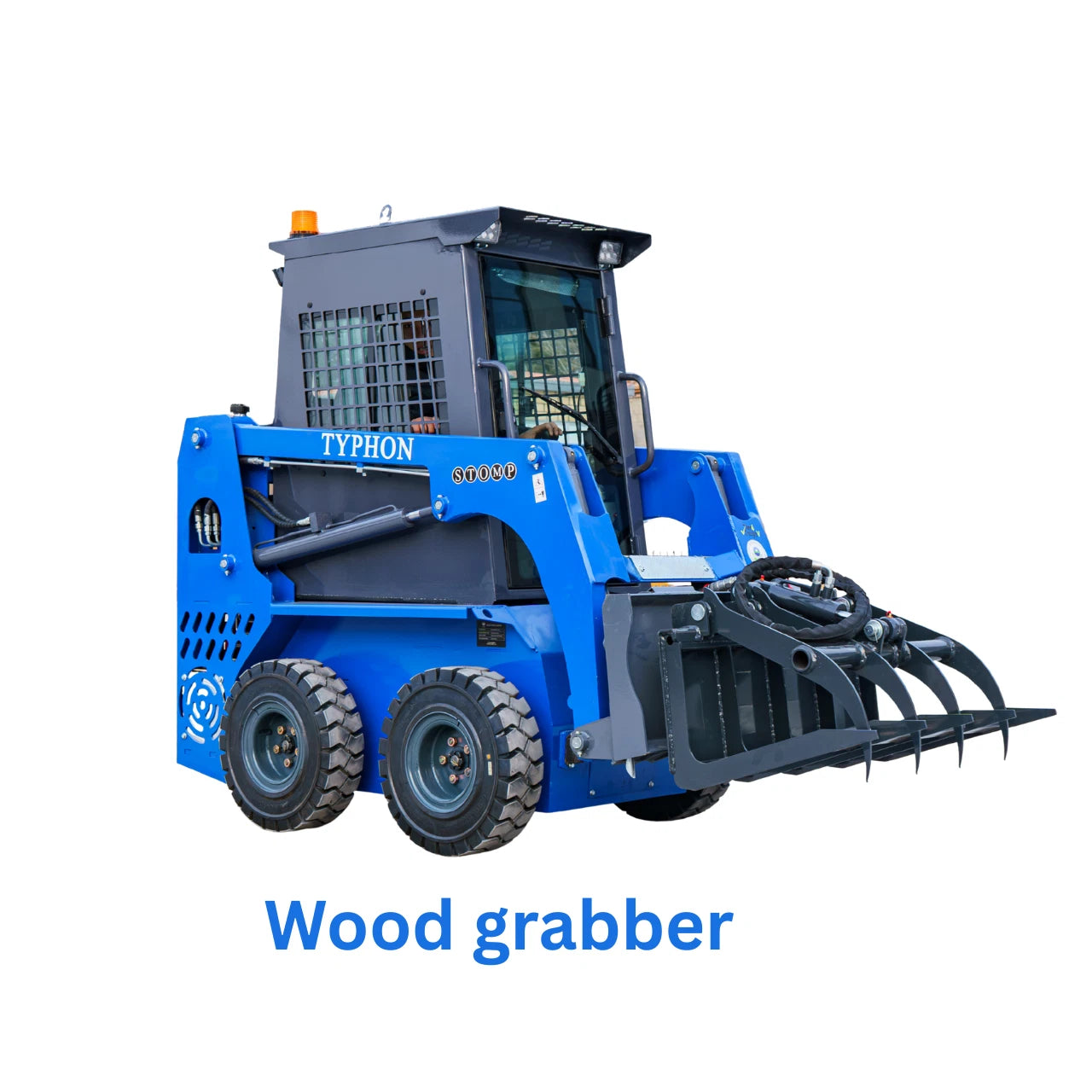

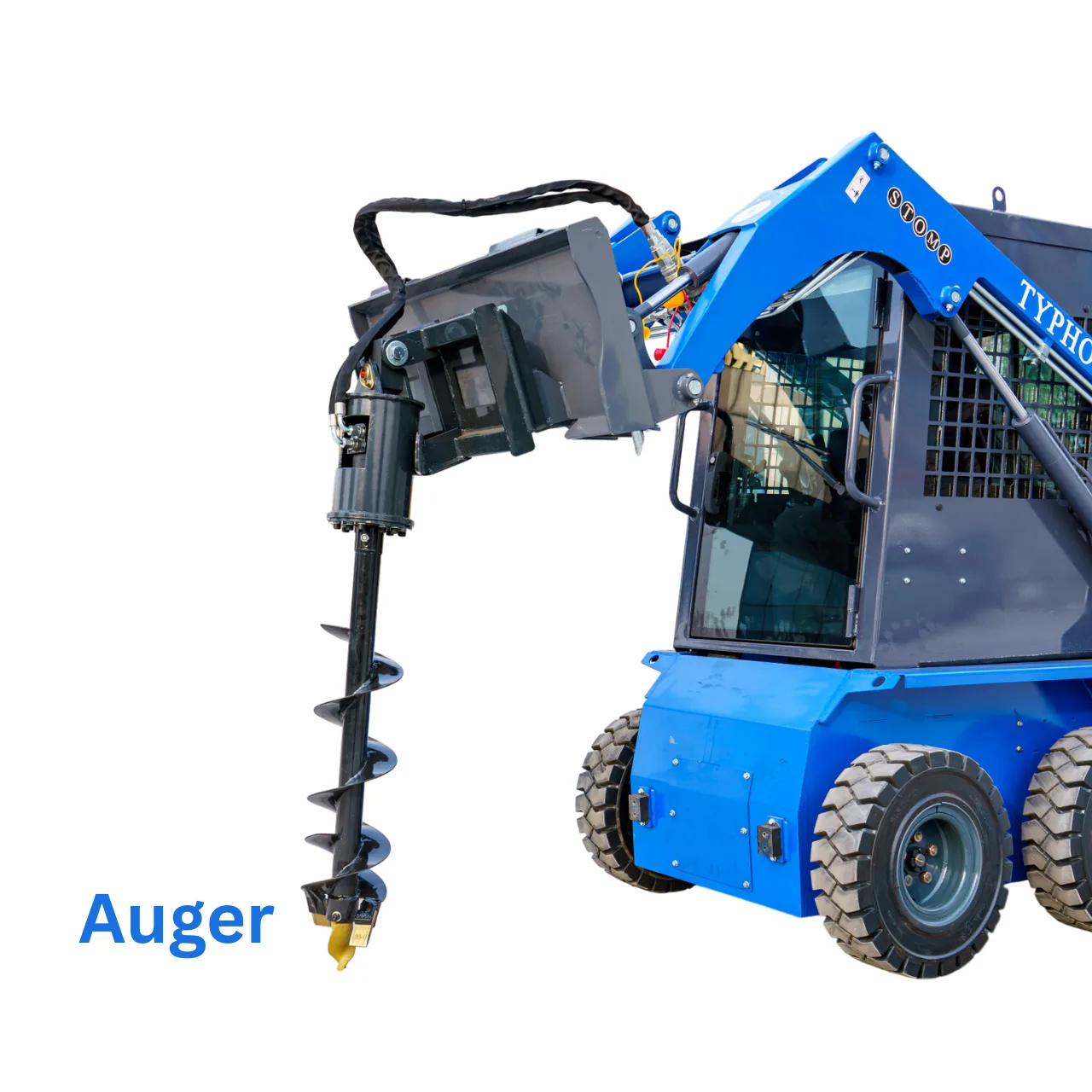

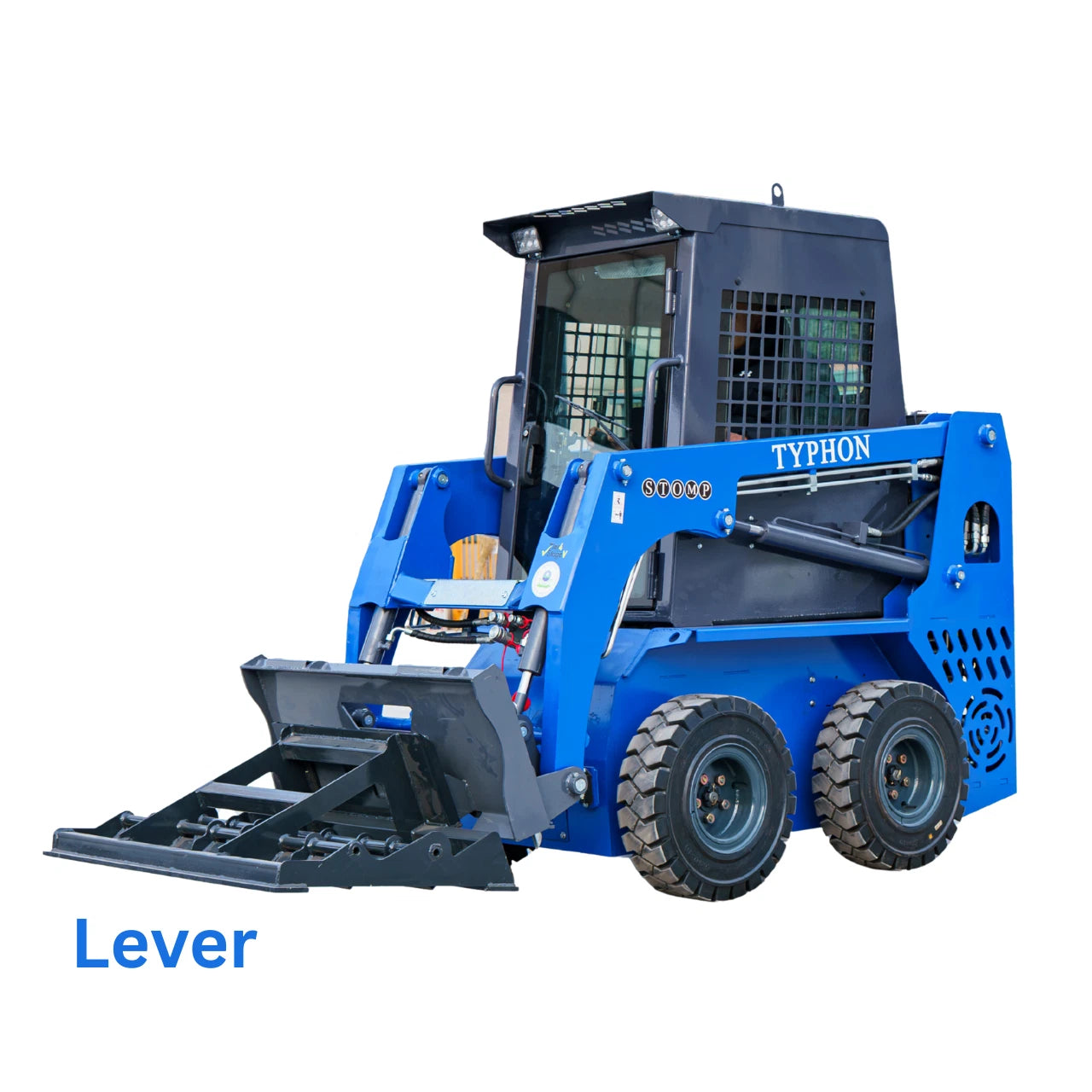

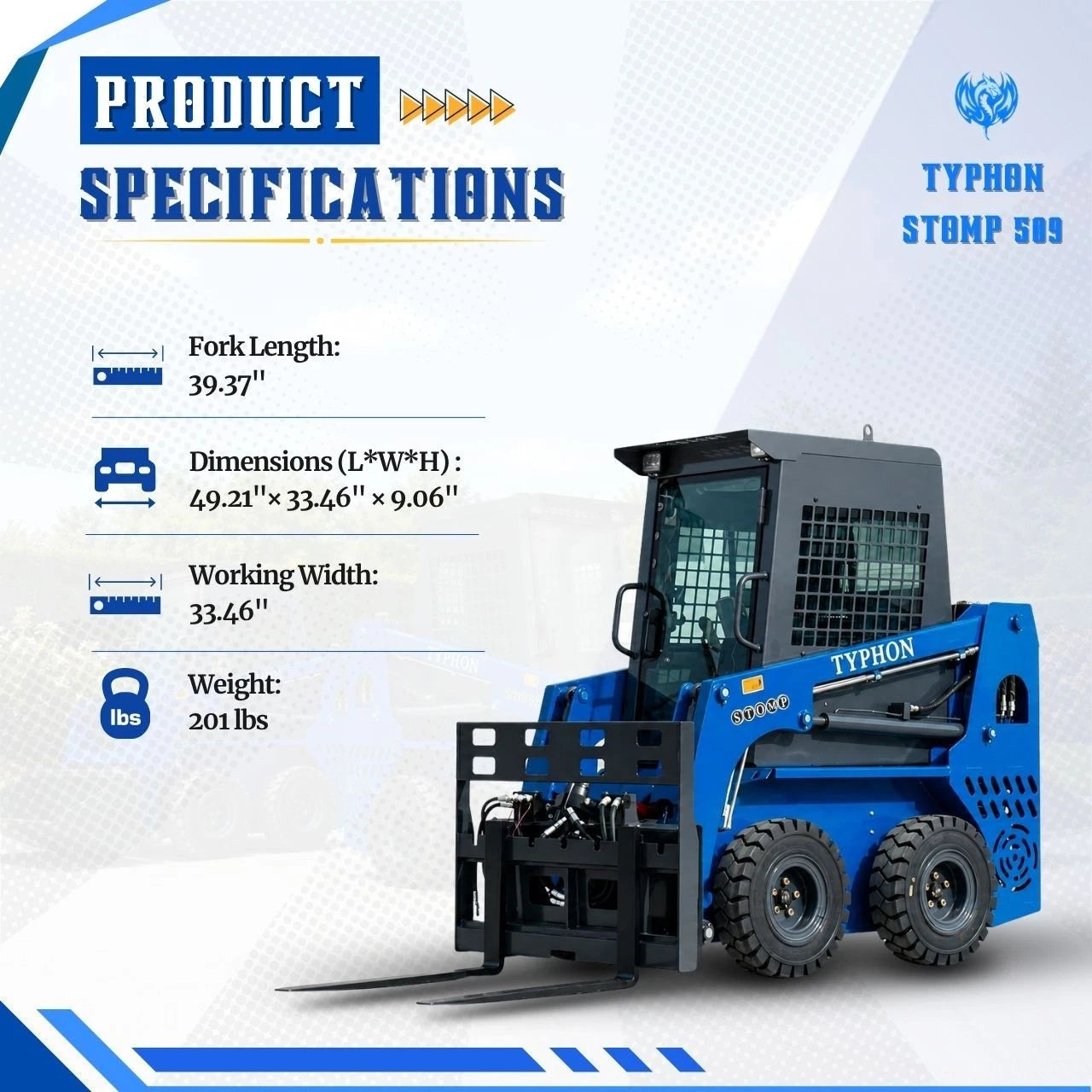

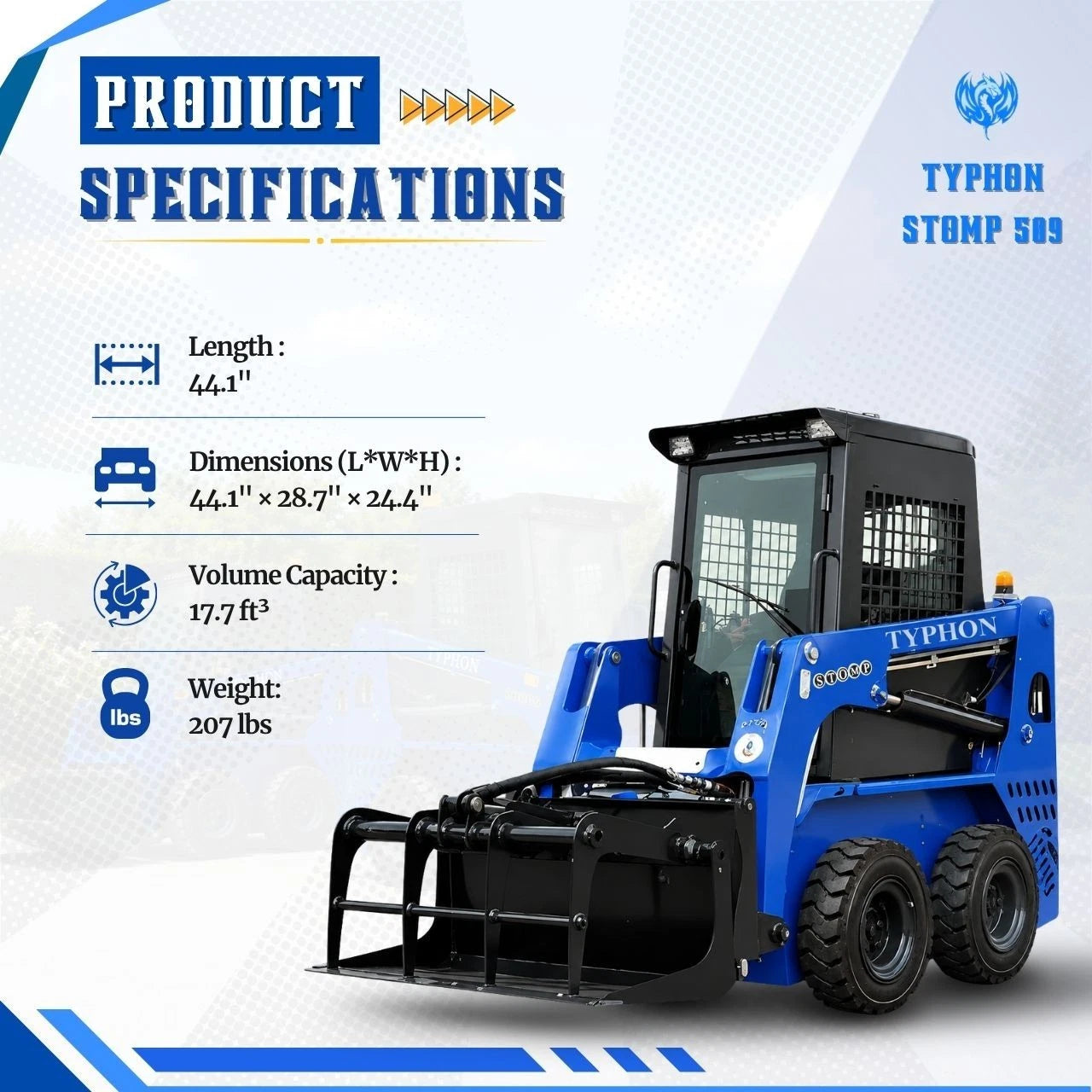

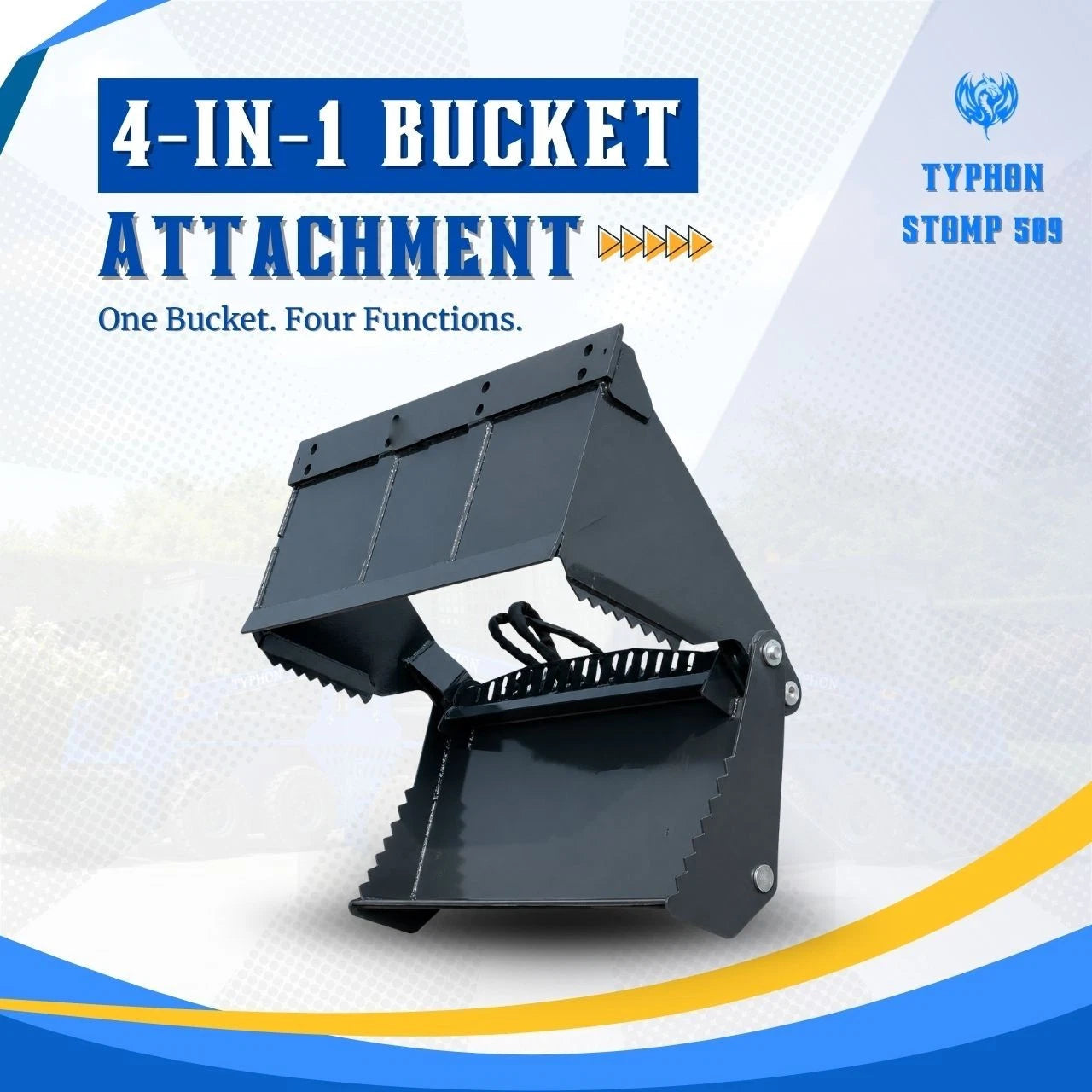

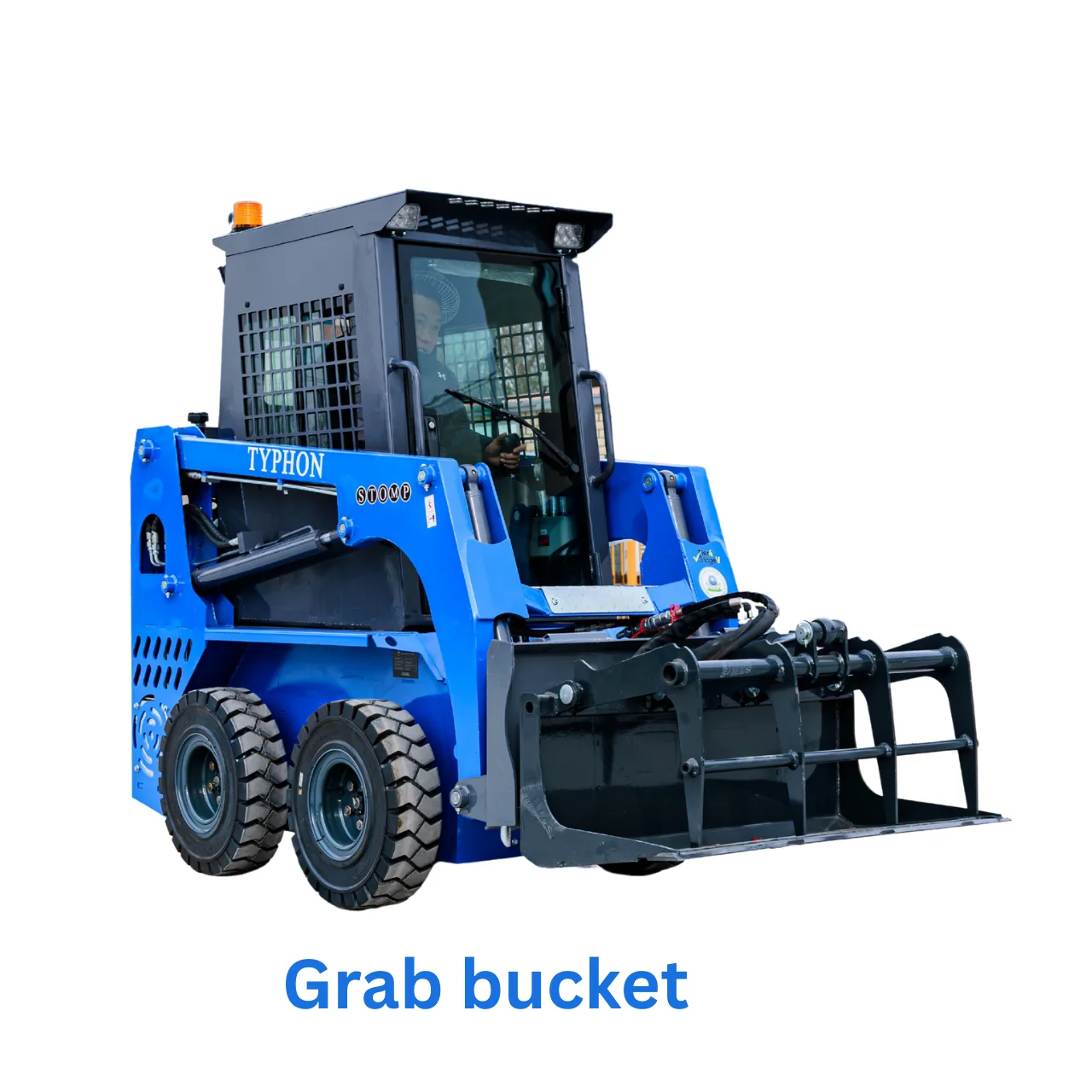

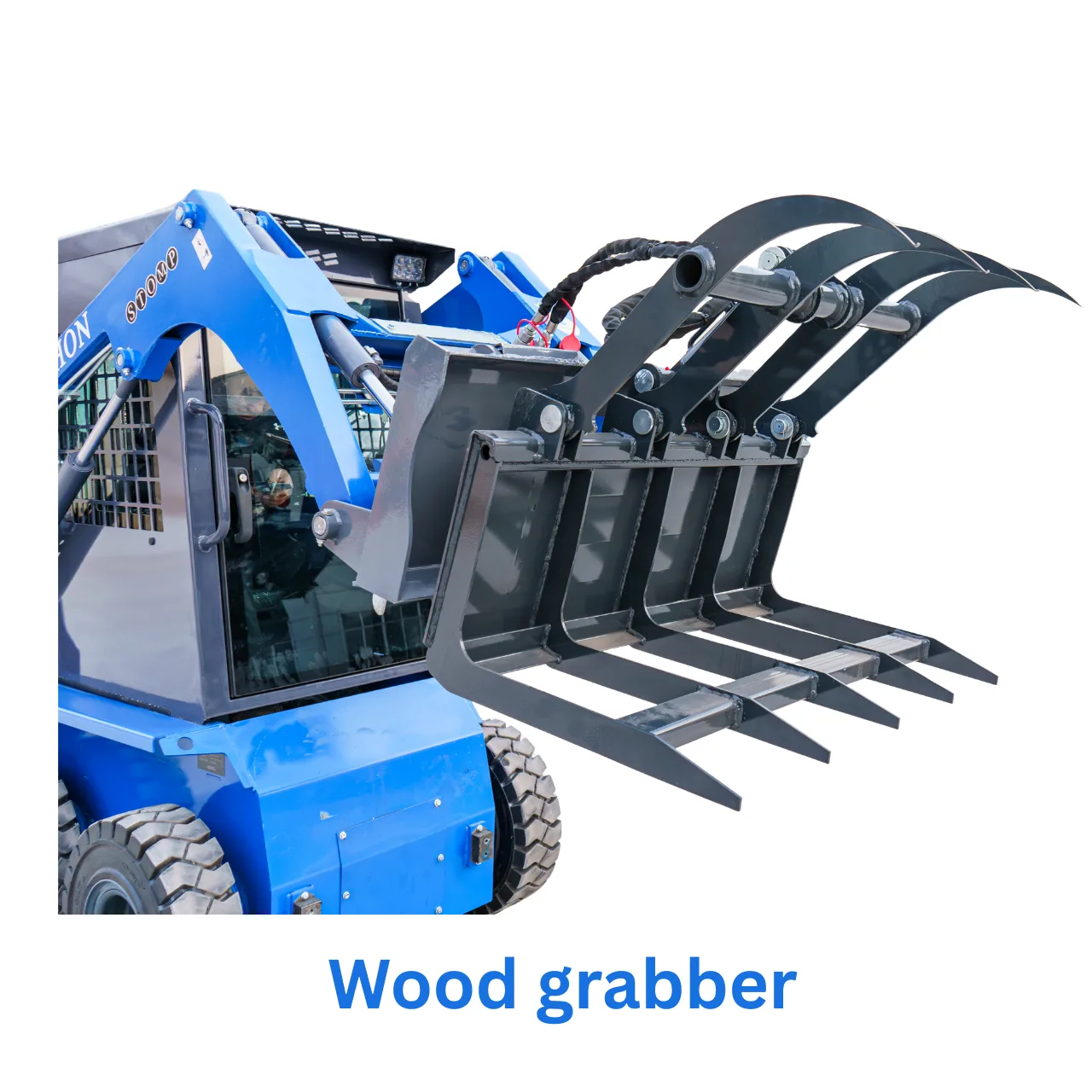

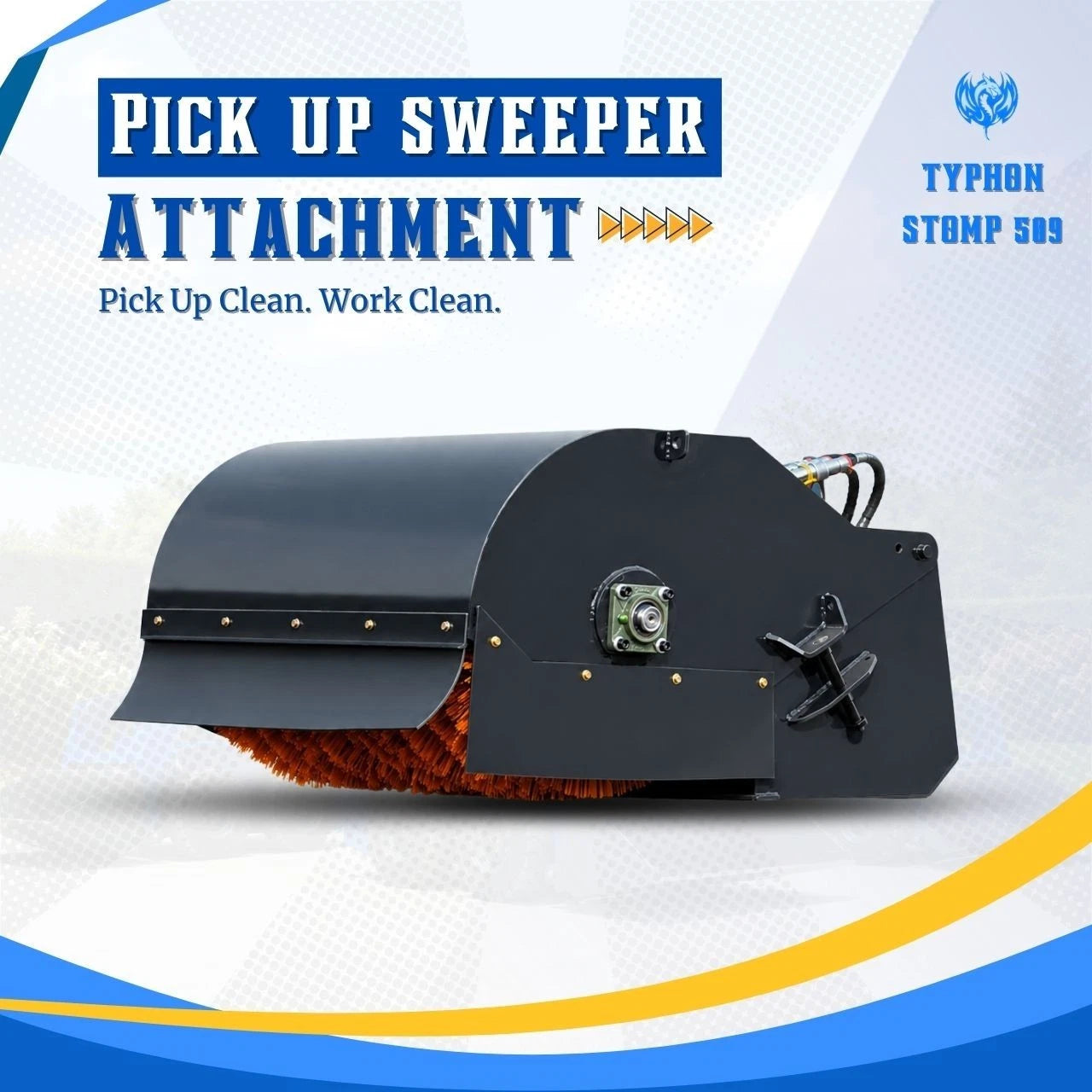

Maximize your efficiency and match your specific job needs by selecting ONE more optional attachment to accompany your machine. Whether you work in construction, landscaping, farming, or property maintenance, we have the right tool to expand your capabilities.

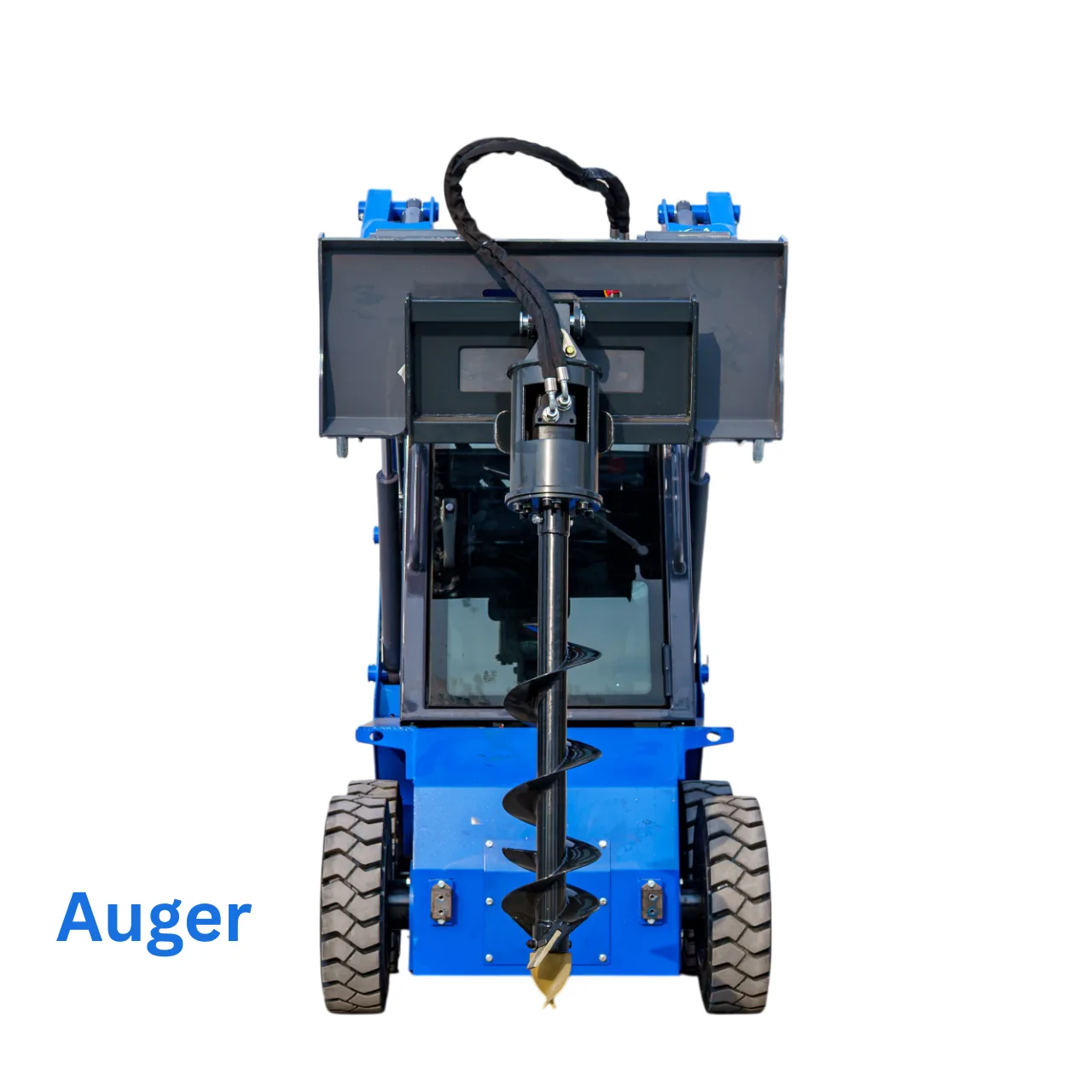

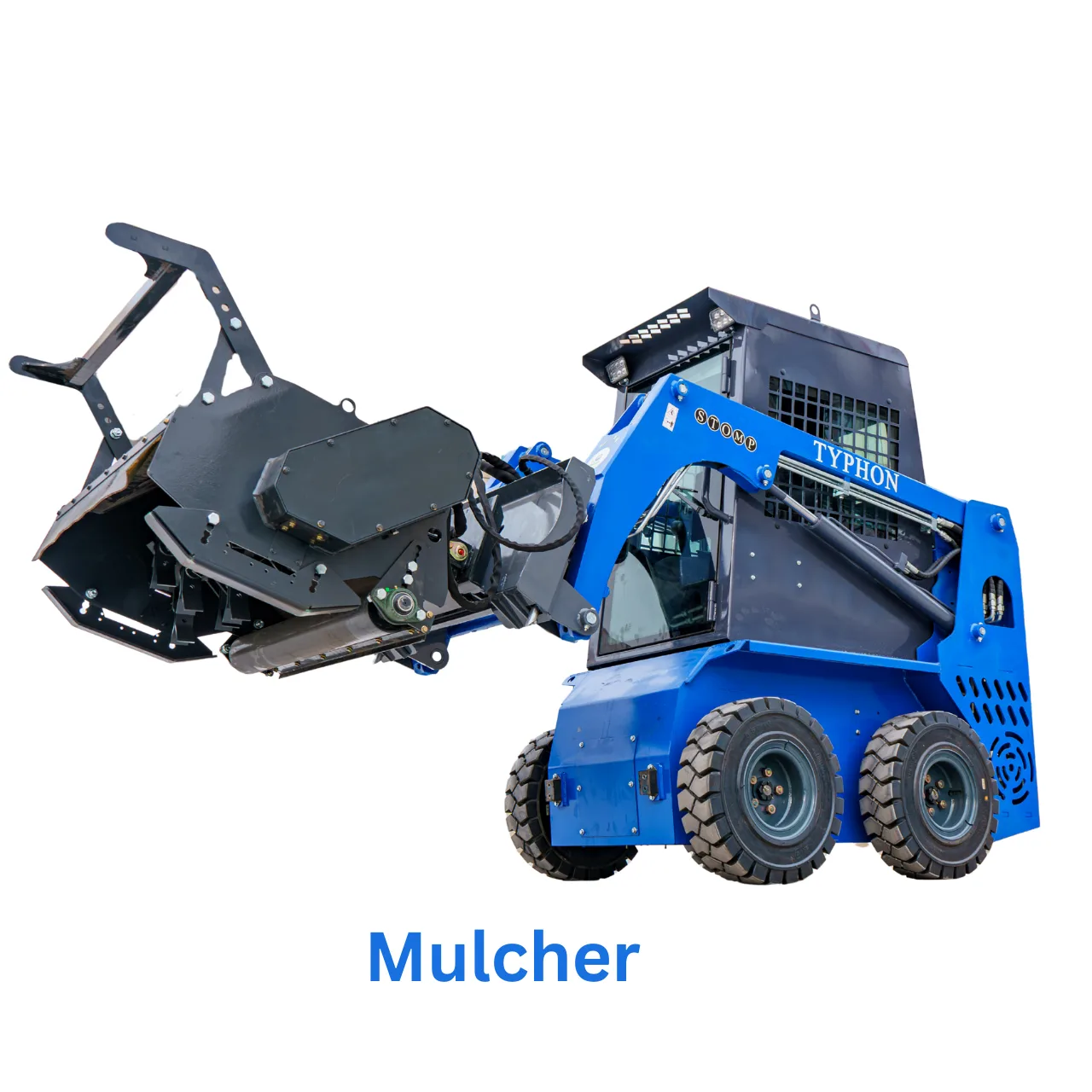

Choose ONE more of the following attachments:
